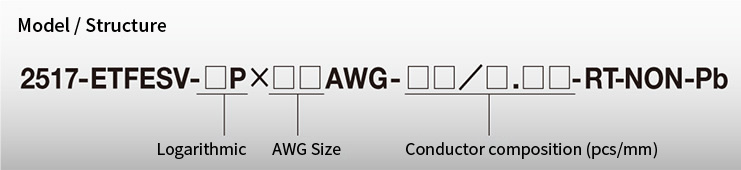

FA cable for moving parts
UL STYLE 2517Multi pair cables with braided shield
UL style 2517: Multi pair cables with braided shield
Application
Shielded cable for electronic device wiring
Features
- UL approved robot cable
- UL VW-1 flame retardant
- Uses oil-resistant vinyl material
Specification example
| Size(AWG) | logarithm | Tinned annealed copper wire conductor | Insulator | Tinned annealed copper wire(mm) |
Sheath | Characteristic | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Composition(pcs/mm) | Outer diameter(mm) | Material | Outer diameter(mm) | Material | Outer diameter(mm) | Rated voltage(V) | Rated temperature(℃) | Insulation resistance15.6℃ (MΩ・ km) |
Conductor resistance20℃ (Ω/km) |
|||
| 26 | 2P | 30/0.08 | 0.51 | ETFE | 1.06 | 0.08 single braid |
Lead-free oil resistant PVC |
6.3 | 300 | 105 | 1000 or more |
143 or less |
| 3P | 6.7 | |||||||||||
| 4P | 7.2 | |||||||||||
| 5P | 7.7 | |||||||||||
| 6P | 8.3 | |||||||||||
| 7P | 9.1 | |||||||||||
| 8P | 9.7 | |||||||||||
| 10P | 10.5 | |||||||||||
| 12P | 10.9 | |||||||||||
| 24 | 2P | 50/0.08 | 0.66 | ETFE | 1.22 | 0.08 single braid |
Lead-free oil resistant PVC |
6.9 | 300 | 105 | 1000 or more |
85.1 or less |
| 3P | 7.3 | |||||||||||
| 4P | 7.9 | |||||||||||
| 5P | 8.7 | |||||||||||
| 6P | 9.4 | |||||||||||
| 7P | 10.1 | |||||||||||
| 8P | 10.9 | |||||||||||
| 10P | 11.8 | |||||||||||
| 12P | 12.2 | |||||||||||
| 22 | 2P | 78/0.08 | 0.82 | ETFE | 1.38 | 0.08 single braid |
Lead-free oil resistant PVC |
7.5 | 300 | 105 | 1000 or more |
55.5 or less |
| 3P | 8.0 | |||||||||||
| 4P | 8.7 | |||||||||||
| 5P | 9.5 | |||||||||||
| 6P | 10.3 | |||||||||||
| 7P | 11.2 | |||||||||||
| 8P | 12.0 | |||||||||||
| 10P | 13.2 | |||||||||||
| 12P | 13.6 | |||||||||||
