FA cable for moving parts
UL STYLE 2501Multi core cables with braided shield

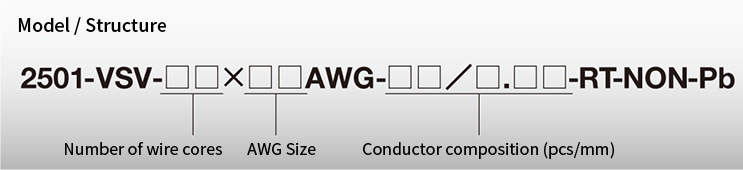

UL style 2501: Multi core cables with braided shield
Application
Shielded cable for electronic device wiring
Features
- UL approved robot cable
- UL VW-1 flame retardant
- Uses oil-resistant vinyl material
Specification example
| Size(AWG) | Number of cores | Tinned annealed copper wire conductor | Insulator | Tinned annealed copper wire(mm) |
Sheath | Characteristic | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Composition(pcs/mm) | Outer diameter(mm) | Material | Outer diameter(mm) | Material | Outer diameter(mm) | Rated voltage(V) | Rated temperature(℃) | Insulation resistance15.6℃ (MΩ・ km) |
Conductor resistance20℃ (Ω/km) |
|||
| 22 | 2 | 78/0.08 | 0.82 | Lead-free PVC |
2.44 | 0.08 single braid |
Lead-free oil resistant PVC |
8.8 | 600 | 105 | 50 or more |
55.5 or less |
| 3 | 9.3 | |||||||||||
| 4 | 9.9 | |||||||||||
| 20 | 2 | 117/0.08 | 1.00 | Lead-free PVC |
2.62 | 0.08 single braid |
Lead-free oil resistant PVC |
9.2 | 600 | 105 | 50 or more |
36.7 or less |
| 3 | 9.7 | |||||||||||
| 4 | 10.4 | |||||||||||
| 18 | 2 | 183/0.08 | 1.25 | Lead-free PVC |
2.89 | 0.08 single braid |
Lead-free oil resistant PVC |
9.7 | 600 | 105 | 50 or more |
23.5 or less |
| 3 | 10.3 | |||||||||||
| 4 | 11.0 | |||||||||||
