10G and 12Gbps CameraLink HS AOC Armored
10G and 12Gbps CameraLink HS AOC Armored
Usage
Connecting between frame grabber and AOC- compatible camera that uses CameraLink HS interface (CX4) Use in environments where mechanical loads may be applied to the cable.
Features

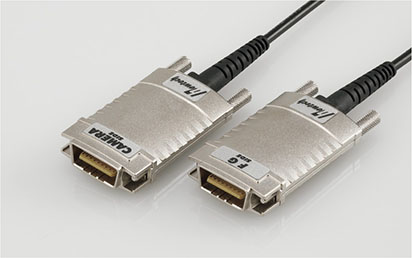

Compatible with long-distance optical transmission. Covering optical fibers with protective tubing (steel armor) overcomes the weakness of easily breakable optical fiber cables.
- It is compatible with CameraLink HS interface.
- InfiniBandTM-compatible connector (CX4) and thumbscrew-type cover are adopted.
- The transmission line supports transmission over a maximum of 300 m with E/O conversion and O/E conversion.
- Two types are available, with maximum transmission rates of 10G and 12Gbps (1 lane), respectively.
-
10G type: Supports 5 G/8 lanes and 10 G/8 lanes.
12.5G type: Supports 5 G/8 lanes, 10 G/8 lanes, 12 G/8 lanes.
Specification
| Item | Specification |
|---|---|
| Cable diameter | 3.2 mm |
| Minimum bend radius | 32 mm |
| Cable color: Black | Black |
| Tensile strength | 150 N |
| Crush resistance | 3000 N/100 mm |
| Standard lengths | 1, 5, 10, 20, 30, 50, 100, 280, 300 m |

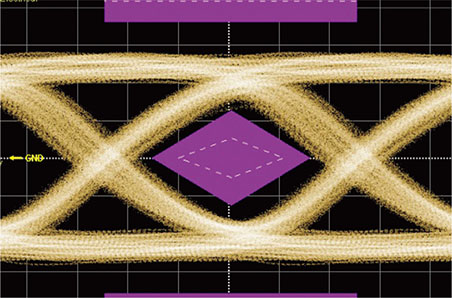

Eye-pattern waveform for 12Gbps transmission measurement

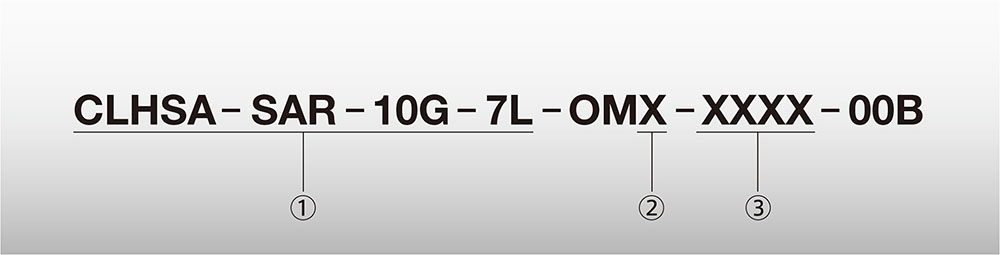

10G and 12Gbps CameraLink HS AOC Armored nomenclature
| ① Category |
Code | Description |
|---|---|---|
| CLHSA - SAR - 10G - 7L | 10G- and 12Gbps-compliant CameraLink HS AOC Armored |
| ② Cable type |
Code | Description |
|---|---|---|
| 3 | No more than 100 m | |
| 4 | 150m/200m/300m products |
| ③ L Length |
Code | Description |
|---|---|---|
| 0100 | 10m | |
| 1000 | 100m | |
| 1500 | 150m | |
| 3000 | 300m |
