Machine Vision Interface Cables

Active USB3 Vision Cable

Mid- and Long-Distance Transmission ACC

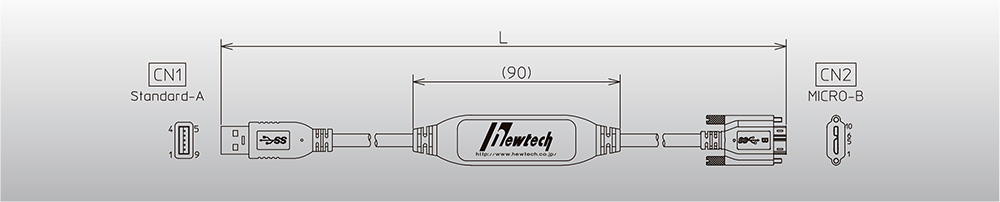

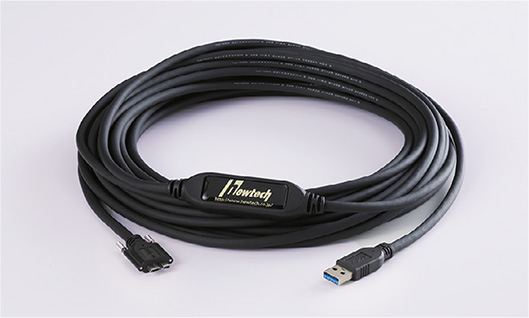

Example of a finished product : Standerd-A to Micro-B(with Screw)

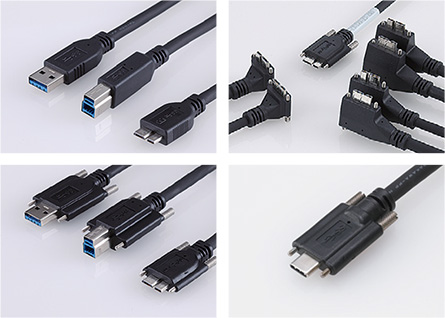

* Examples of supported plugs
Usage

A series of Active Copper Cable (ACC) products have been released as USB3 Vision cables for mid- and long-distance transmission.

Features
It is possible to combine the standard Type-A connector with the Type-B, Micro-B or Type-C connector (with or without a screw). As fixing and sliding cables can be selected, the product can be used in various applications. Complies with the RoHS Directive (10 substances).

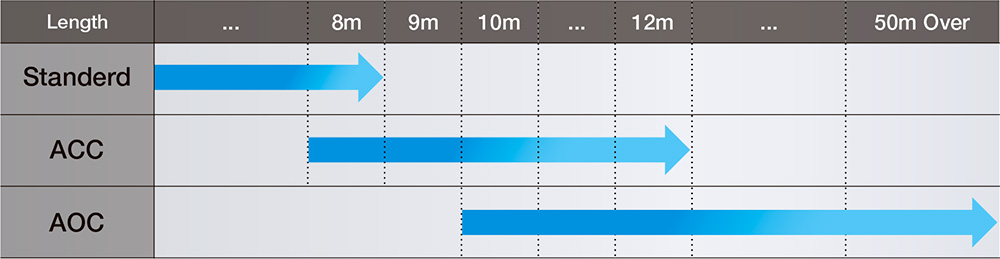

Reference of ACC transmission distance

Transmission distance of approx. 12 m can be supported while it differs depending on the performance of and compatibility with the USB3 Vision camera, PC, hub, and frame grabber (FG) board to be connected.

*1) Before adopting this product, perform an evaluation test in your operating environment. (For information about the rental evaluation cable, contact our sales staff.)

*2) We are developing an AOC cable for customers who want cables whose length is 12 m or more. A rental transmission evaluation sample is available. Contact us.

*3) The maximum length is 50m when the AOC type is used alone. (AM to AF)

The JIIA logo is a registered trademark of the Japan Industrial Imaging Association.

* The JIIA logo is a registered trademark of the Japan Industrial Imaging Association.
