CoaXPress Repeater
CoaXPress Repeater
Cable extension repeater used for connection between a CoaXPress- supporting camera and a frame grabber
- CXP-1 to CXP-12 are supported.
- The lineup includes the 1-chanel, 2-channel, and 4-channel models.
- PoCXP is supported.
- The cable length can be extended by two times.
(Two 30-meter 5C fixing cables manufactured by Hirakawa Hewtech are combined for a total length of 60 meters; transmission checking has been conducted.) - Compact and lightweight
- Compliant with RoHS (10 substances).
- CE marked and UKCA marked.
Models and specifications
| Number of channels | Product name | Rough dimensions（mm） | Rough weight（g） | |||
|---|---|---|---|---|---|---|
| A | B | C | D | |||
| 1ch | CPRCHGH101 | 41 | 15 | 56 | 40 | Approx. 35 |
| 2ch | CPRCHGH201 | 70 | 20 | Approx. 70 | ||
| 4ch | CPRCHGH401 | 70 | 35 | Approx. 110 | ||
| Operating voltage | +24V DC |
|---|---|
| Power consumption | 0.27 W/channel (excluding PoCXP) |
| Connector | MicroBNC |
The CoaXPress
Repeater is
CE marked and
UKCA marked.

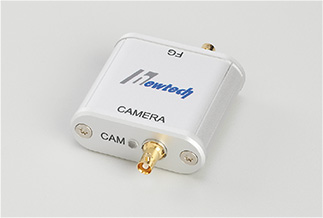

1ch

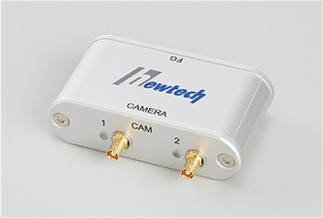

2ch

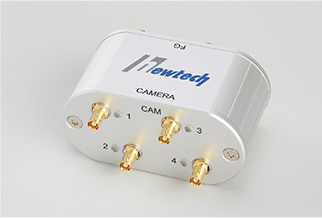

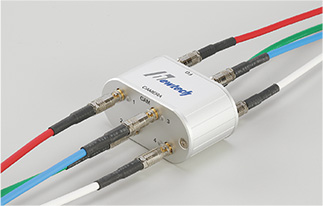

4ch
Notes
• Make sure that the camera and frame grabber that you use support PoCXP.
• Connect the cables according to the instructions indicated on the camera and FG of the repeater.
• Connect the PoCXP cable to the connector of 1.
• Check that the repeater cable for 2ch/4ch is connected to a connector other than 1, and then connect 1 (PoCXP) last.
• Do not disassemble, modify, repair, or otherwise damage the repeater.
• Do not apply excessive load or shock during use. Doing so may lead to failure.
• If you have any questions, contact our sales staff.
