USB3 Vision AOC
USB3 Vision AOC
Long-distance transmission AOC for USB3 Vision- compatible camera
- It is compatible with USB3 interface.
- It is compatible with various USB connectors.
(Type-C to Type-C, Standard-A to Type-C, Standard-A to Micro-B, Standard-A to Standard-A Female) - The transmission line is compatible with long-distance optical transmission using E/O and O/E conversion.
- Hybrid optical cables can supply power to a device.
- A maximum transmission rate of 10Gbps is supported.
- Operating temperatures of 0 to 50°C are supported.
We are advancing the development of AOCs (Active Optical Cables) as USB3 Vision cables for long-distance transmission, thus expanding our lineup. We offer cables with connectors such as USB Standard-A/Female, Micro-B, and Type-C to satisfy the needs of our users.
-
■ UB3-AOC-SC0-SC0
・Compliant with USB 3.1 Gen2 standard, providing ultra-fast bandwidth of 10Gbps.
・Supports a maximum length of 30m. Supports USB3.1 Gen2 & USB2.0 (15m).
USB3.1 Gen1(20m/30m)
-
UB3-AOC-SC0-SC0

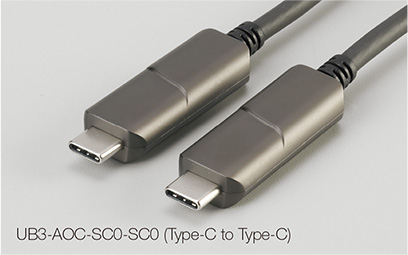

(Type-C to Type-C)
-
■ UB3-AOC-SA0-SC0
・Supports a bandwidth of 5Gbps.
・Available in lengths of up to 50m (10m/20m/30m/40m/50m).
・Supplies power from the host side to the device side.
・The maximum length is determined by the voltage drop of the VBUS line.
・Supports plug-and-play on both sides.
-
UB3-AOC-SA0-SC0
(Standard-A to Type-C)
-
■ UB3-AOC-SA0-MBS
・Supports a bandwidth of 5Gbps.
・Available in lengths of up to 50m (10m/20m/30m/40m/50m).
・Supplies power from the host side to the device side.
・The maximum length is determined by the voltage drop of the VBUS line.
・Supports plug-and-play on both sides.
-
UB3-AOC-SA0-MBS
(Standard-A to Micro-B)
-
■ UB3-AOC-SA0-SA0(S)
・Supports USB3.1 Gen1 & USB2.0.
・Available in lengths of up to 50m(10m/20m/30m/40m/50m).
・Its built-in power circuit can supply a stable voltage to the device side even at a distance of 50m.
-
UB3-AOC-SA0-SA0(S)
(Standard-A to Standard-A Female)
* The JIIA logo is a registered trademark of the Japan Industrial Imaging Association.

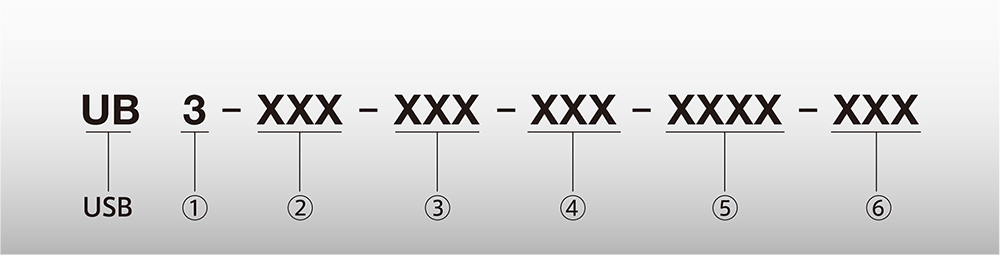

USB3 Vision AOC nomenclature
| ① Category |
Code | Description |
|---|---|---|
| 3 | Complies with USB Ver 3.1 standard. |
| ② Cable type |
Code | Description |
|---|---|---|
| AOC | Active Optical Cable |
| Connector specification ③ Frame grabber side (CN1) ④ Camera side (CN2) |
Code | Description |
|---|---|---|
| SA0 | Standard type A | |
| SA0(S) | Standard female A / panel relay type | |
| MB0 | Micro type B | |
| SC0 | TYPE-C |
| ⑤ L Length |
Code | Description |
|---|---|---|
| 1000 | 10m | |
| 1500 | 14m | |
| 2000 | 20m | |
| 3000 | 30m | |
| 4000 | 40m | |
| 5000 | 50m |
| ⑥ Jacket color |
Code | Description |
|---|---|---|
| 00K | Black (default color) |
