High-speed transmission cables for data centers
HIGH SPEED PASSIVE COPPER CABLES

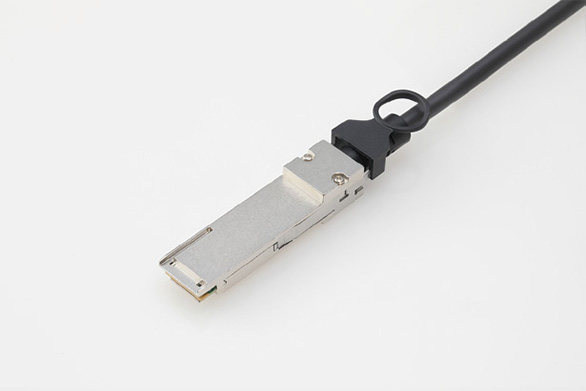

QSFP series

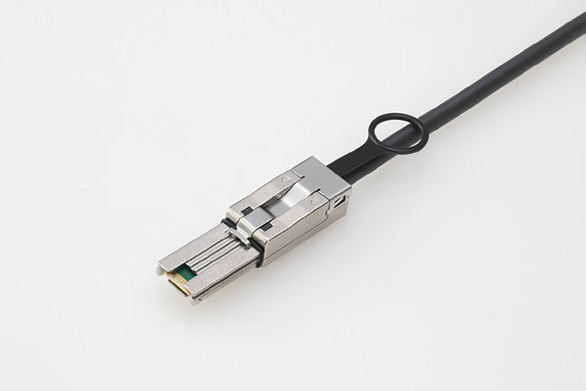

Slim SAS HD
（Mini SAS HD）series

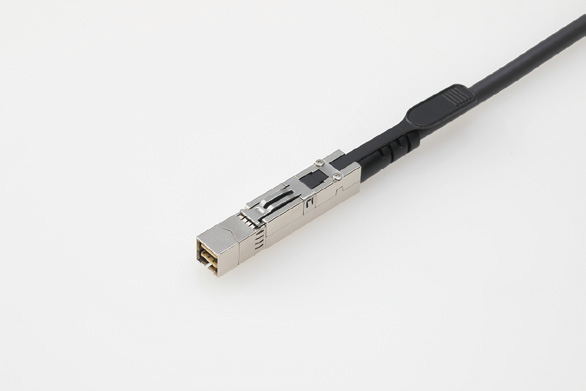

Slim SAS series

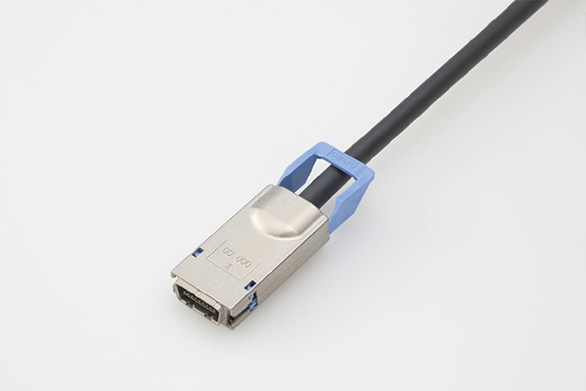

CX4 series
Application
It is a high-speed, high-quality industrial (data storage, network SW) cable that supports standards such as SAS, PCI-E, Infiniband, Omnipath, Ethernet, and RoCE, and can support up to 200 Gbps.
Features
- Slim SAS HD is our original connector that is 100% compatible with Mini SAS HD and has improved the drawback of Min SAS HD that cannot be mounted in high density (patented product). It also supports various protocols.
- SAS 3.0/12Gbps, SAS 4.0/24Gbps
- PCI-E 3.0/8Gbps, PCI-E 4.0/16Gbps
- Infiniband EDR 200Gbps
- RoCE * 100Gbps
- RoHS (10 substances) compliant
* RoCE is one of the IBTA (InfiniBand Trade Association) standards and stands for Remote Direct Memory Access (RDMA) over Converged Ethernet.
Structure and performance
| PROTOCOL | SPEED | DESCRIPTION | MAXIMUM LENGTH |
|---|---|---|---|
| Infiniband | 200 Gbps | QSFP56 SFF-8665 - QSFP56 SFF-8665 | up to 3 meters |
| Infiniband | 100 Gbps | QSFP28 SFF-8665 - QSFP28 SFF-8665 | up to 5 meters |
| Infiniband | 40 Gbps | QSFP+ SFF-8436 - QSFP+ SFF-8436 | up to 5 meters |
| Omnipath | 100 Gbps | QSFP28 SFF-8665 - QSFP28 SFF-8665 | up to 5 meters |
| Ethernet | 100 Gbps | QSFP28 SFF-8665 - QSFP28 SFF-8665 | up to 5 meters |
| SAS 4.0 | 24 Gbps | Mini SAS HD SFF-8654 - Mini SAS HD SFF-8654 | up to 5 meters |
| SAS 3.0 | 12 Gbps | Mini SAS HD SFF-8644 - Mini SAS HD SFF-8644 | up to 8 meters |
| SAS 2.0 | 6 Gbps | Mini SAS SFF-8088 - Mini SAS SFF-8088 | up to 10 meters |
| PCI-E 4.0 | 16 Gbps | Mini SAS HD SFF-8644 - Mini SAS HD SFF-8644 | up to 3 meters |
| PCI-E 4.0 | 16 Gbps | QSFP+ SFF-8436 - QSFP+ SFF-8436 | up to 3 meters |
| PCI-E 3.0 | 8 Gbps | Mini SAS HD SFF-8644 - Mini SAS HD SFF-8644 | up to 10 meters |
| PCI-E 3.0 | 8 Gbps | QSFP+ SFF-8436 - QSFP+ SFF-8436 | up to 10 meters |
| PCI-E 3.0 | 8 Gbps | CX4 SFF-8470 - CX4 SFF-8470 | up to 8 meters |
