High-precision, High-speed transmission cable
Multi-Pole Differential Coaxial Cable Assembly
Multi-Pole, high-density, space-saving modularized product for long-distance high-speed communication!
Usage
IO-ASSY between devices requiring high-speed communication of communication and inspection devices
※For internal wiring of high-speed differential transmission such as FPGA
Features
- Specialized technology (differential cable, low Skew, LVDS interface)
- Original design of mechanical parts (Substrate, cover and xing parts)
- Wire manufacturers developing and designing coaxial cables build Modularized products
Example product FX18-80PIN-IO-ASSY
●Connector for substrate to substrate, differential coaxial cable, substrate design, cover, screw fixation●Connector: FX18 series (Hirose Electric Co., Ltd., high-speed 0.8 mm pitch) ※
●Number of differential signals: 26 pairs (52)
※Please access the FX18 series product information of Hirose Electric Co., Ltd., from here.
https://www.hirose.com/en/product/series/FX18
https://www.hirose.com/en/product/series/FX18

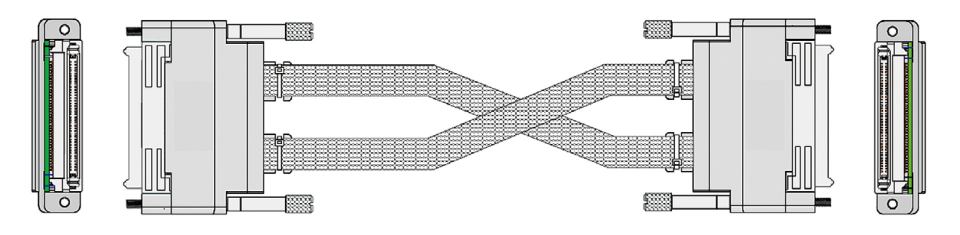

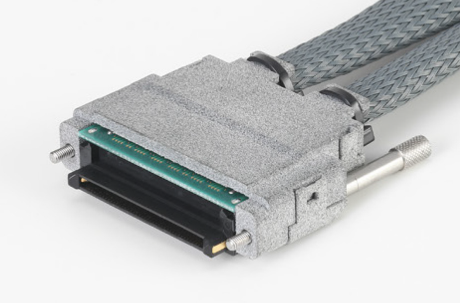

External view
External photo

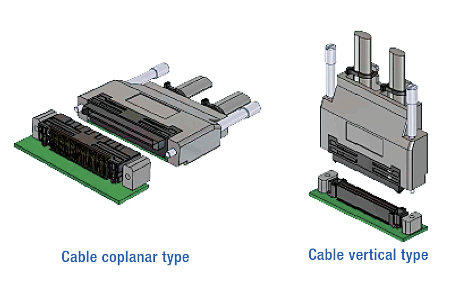

Fitting direction
| Product speci cations | |
|---|---|
| Rated voltage | 30 V or less |
| Rated temperature | 80℃ or less |
| Test voltage | 500 VAC/min |
| Insulation resistance | 1000 MΩ or more |
| Number of insertions and removals | 500 times |
| Fixing method | Jack Screw M2.6 |
| Frequency | 1 Gbps to 20 Gbps |
| Product length | 1m to 5m |

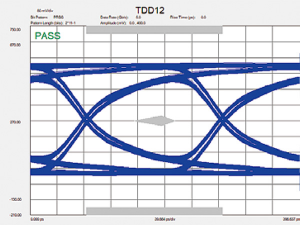

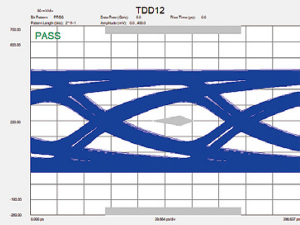

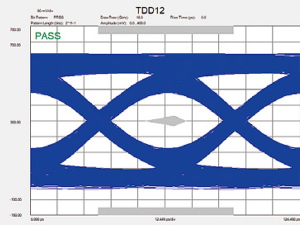

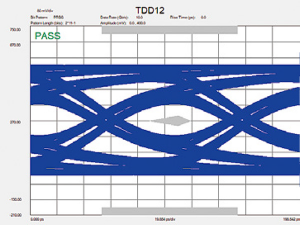

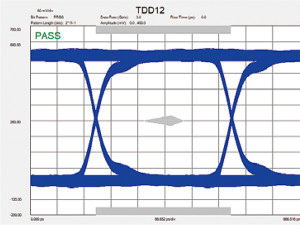

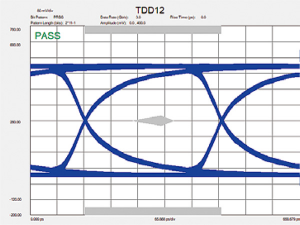

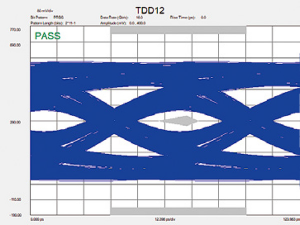

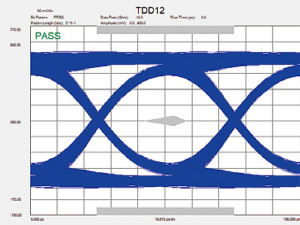

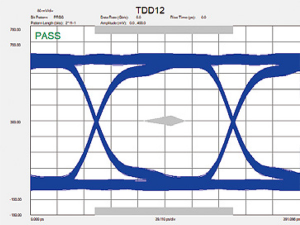

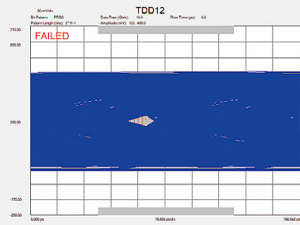

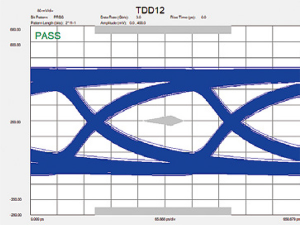

Transmission characteristics by frequency and product length (check the opening of the eye pattern)
Frequency 3Gbps
Length:1m
Length:3m
Length:5m
Frequency 5Gbps
Length:1m
Length:3m
Length:5m
Frequency 10Gbps
Length:1m
Length:3m
Length:5m
Frequency 16Gbps (Assuming PCIe 4.0)
Length:1m
Length:2m

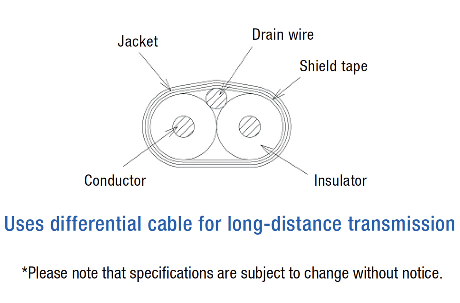

■Example of center drain cable configuration
（impedance:100Ω）

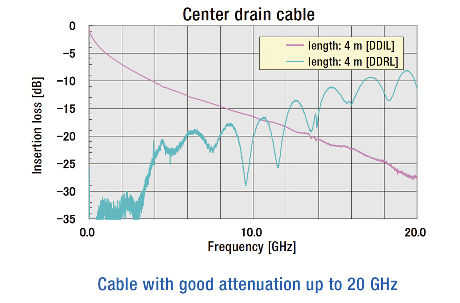

■Cable characteristic data length:4m
