High-precision, High-speed transmission cable

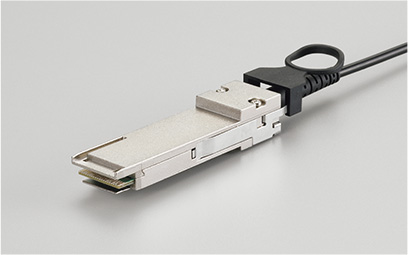

QSFP28 AOC (Armored*) Cable
QSFP28 AOC(Armored) Cable
Usage
Overcoming the weakness of optical fiber cables, which, despite being optimal for high- speed transmission, are prone to breakage.
Enabling transmission at 100Gbps, especially in environments with mechanical loads, such as those of FA and Machine Vision.
Features

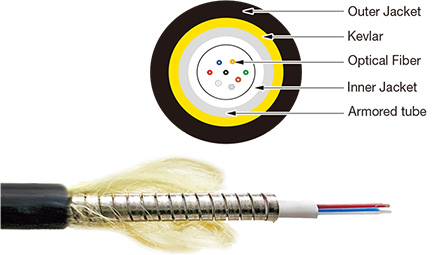

- Specifications include covering optical fibers with protective tubing (steel armor).
- An AOC (Active Optical Cable) adopts optical transmission, capable of transmitting for distances beyond regular cables can achieve.
- Compliant with IBTA EDR 100G.
- RoCE (RDMA over Converged Ethernet) 100Gbps
- 100G Ethernet
- Compliant with RoHS (10 substances).
Specification
| Item | Specification |
|---|---|
| Cable diameter | 3.2 mm |
| Minimum bend radius | 32 mm |
| Cable color | Black |
| Tensile strength | 150 N |
| Crush resistance | 3000 N/100 mm |
| Standard lengths | 1, 5, 10, 20, 30, 50, 100, 280, 300 m |
*Armored: An armored cable, also called a protective cable, is designed to protect the internal optical fibers from physical damage.
