Interface Cable for Computer

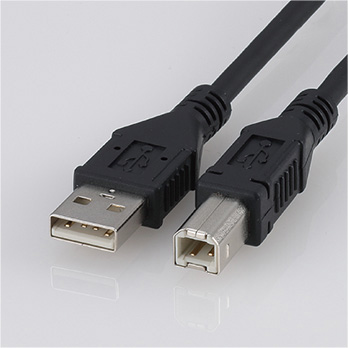

USB 2.0 cable
Universal Serial Bus
Application
For connecting peripherals such as PCs and printers
Features
- Our USB cables conform to the USB standard established by the USB Implementers Forum.
- Compatible with USB 2.0 standard, transmission speed is up to 480Mbps.
- A double shield is adopted as a noise countermeasure for the cable.
- RoHS compliant
- We offer a wide range of products.
*Please contact us for USB 3.0 standard certified products.

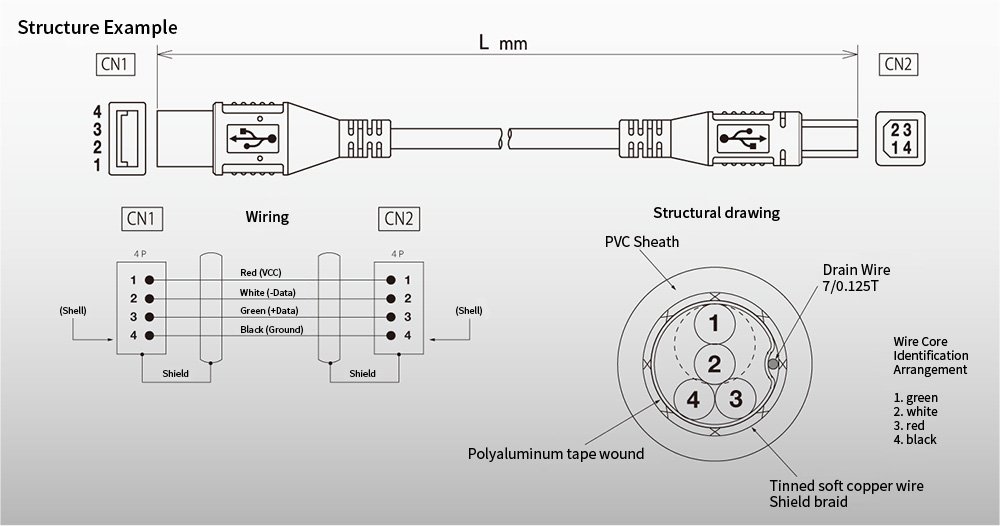

Example of connector AB
L length guide (for AB) | |
---|---|
power supply size | maximum length |
20AWG | 4.0m |
24AWG | 2.0m |
28AWG | 0.8m |
Interface Cable for Computer

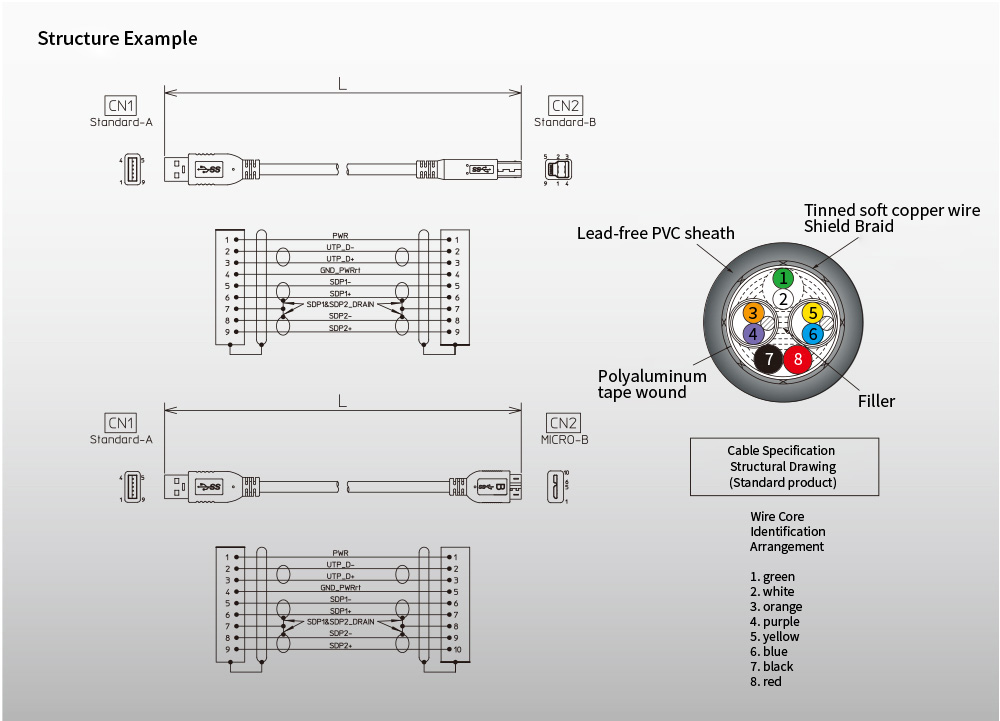

USB 3.0 cable
Universal Serial Bus 3.0
-
"USB 3.0" is a new USB standard established in November 2008 .
By adding two pairs of SDP (Shielded Differential Pair) to a conventional USB 2.0 cable , high-speed data of "up to 5 Gbps (SuperSpeed: theoretical value)", which is more than 10 times the
maximum transfer speed of USB 2.0 480 Mbps (HighSpeed: theoretical value ) Realize
Application
For connecting a PC with a USB 3.0 standard "Standard-A" terminal and a peripheral device such as an HDD with a "Standard-B" terminal For FA camera connection
Features
- This is a USB cable that supports the USB3.0 standard (5 Gbps).

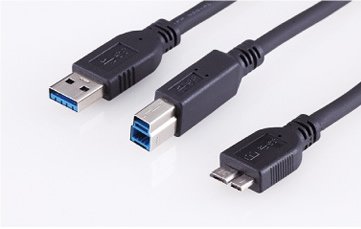

- We have a lineup of USB3.0A connector and USB3.0 micro B connector.
- In addition to standard plugs, FA threaded plugs are also available. (Compliant with USB3 standard)
- The gold-plated terminal connector is adopted.
- RoHS compliant
*1 Please refer to the FA catalog ( USB3Vision cable ) for FA threaded plugs .
*2 Type-A also has a female plug for extension, so please contact us.
*3 Please contact us for USB 3.0 standard certified products.
