Interface Cable for Computer
SUPER FINE COAXIAL CABLES, ASSEMBLIES
In order to meet the needs of our customers, we offer standard products with specifications that give characteristics to each AWG size.
Application
・Various types of internal harness
- Consumer equipment …
- PCs, tablets, camcorders, digital cameras, games, etc.
- Industrial equipment…
- Inspection equipment, communication equipment, measuring equipment, cameras, etc.
- Medical equipment …
- Diagnosis equipment, treatment equipment, etc.
Features

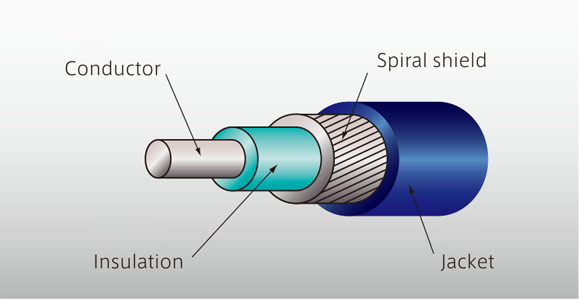

- For each AWG size, the standard design value of the characteristic impedance is available as a 50Ω product.
- We support connectors that enable light weight, miniaturization, and high-density mounting.

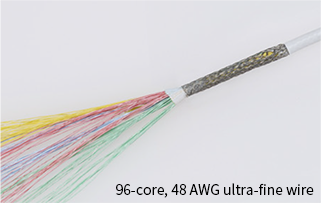

- Standard products are also available for cables thinner than 44AWG.
■Connector application example

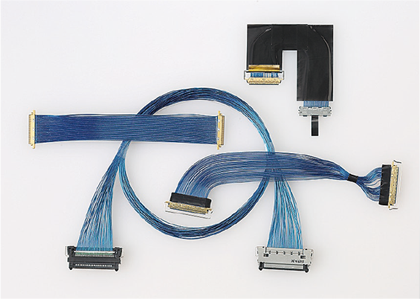

As an example of developing our standard cable into an assembly product, we will introduce the target connector using the "I-PEX CABLINE series" manufactured by Daiichi Seiko Co., Ltd. as an example. We also support various connector manufacturers.
As an example of developing our standard cable into an assembly product, we will introduce the target connector using the "I-PEX CABLINE series" manufactured by Daiichi Seiko Co., Ltd. as an example. We also support various connector manufacturers.
AWG Size | 40 | 42 | 42 | 42 | 44 | 44 | 46 | 48 * under development |
---|---|---|---|---|---|---|---|---|
outer diameter (standard)(mm) | φ0.35 | φ0.325 | φ0.325 | φ0.26 | φ0.25 | φ0.22 | φ0.21 | φ0.18 |
Characteristic Zo(Ω) | 50 | 50 | 50 | 41 | 50 | 45 | 50 | 50 |
Working voltage(V) | 30 or less | 30 or less | 30 or less | 30 or less | 30 or less | 30 or less | 30 or less | 30 or less |
Operating temperature(℃) | 80 or less | 80 or less | 80 or less | 80 or less | 80 or less | 80 or less | 80 or less | 80 or less |
Cable type | ① | ② | ② | ③ | ④ | ⑤ | ⑥ | ⑦ |
Product name (example) | CABLINE-VS | CABLINE-SS, V | CABLINE-UAⅡ | CABLINE-UXⅡ | ||||
Connector Pt (mm) | 0.5 | 0.4 | 0.3 | 0.25 | ||||
number of poles(very) | 20 , 30 , 40 , 50 | 20 , 30 , 40 etc. | 26 , 32 , 40 , 50 | 34 , 40 , 50 | ||||
Fitting type | Horizontal fitting | Vertical (SS), horizontal (V) mating | vertical fit | vertical fit | ||||
best cable type | ①,② | ② | ③,④ | ⑤,⑥,⑦ | ||||
connector photo Connector photo Provided by Daiichi Seiko Co., Ltd. |
![]() |
![]() |
![]() |
I-PEX and CABLINE are registered trademarks of Daiichi Seiko Co., Ltd.
