LAN cable
Cat5e/Cat6/Cat6A cable
Category 5e/6/6A

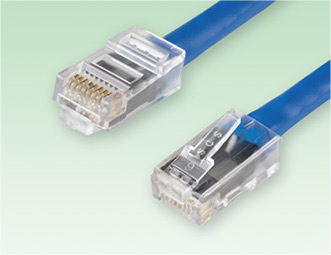

- Cat5e cable

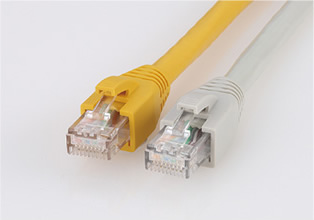

- Cat6 cable

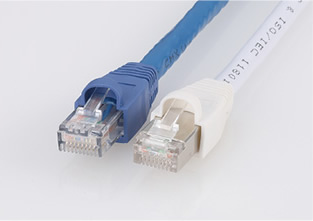

- Cat6A cable
Application
For network and communication equipment
Features
- LAN cable for high-speed transmission of 100MHz, standardized by TIA/EIA 568B 2.
- It supports 1000BASE-T (1Gbps) communication.
- RoHS compliant
*Please contact us for Cat6/Cat6e specifications.
Characteristics (for Cat5e)
| frequency(MHz) | AttenuationdB/100m(Max.) | Near-end crosstalk attenuationdB/100m(Min.) | Power sum near-end crosstalk attenuationdB/100m(Min.) |
Far end crosstalk attenuationdB/100m(Min.) | Power Sum Far End Crosstalk AttenuationdB/100m(Min.) |
return lossdB/100m(Min.) |
|---|---|---|---|---|---|---|
| 0.772 | - | 67.0 | 64.0 | - | - | - |
| 1 | 2.0 | 65.3 | 62.3 | 63.8 | 60.8 | 20.0 |
| 4 | 4.1 | 56.3 | 53.3 | 51.7 | 48.7 | 23.0 |
| 8 | 5.8 | 51.8 | 48.8 | 45.7 | 42.7 | 24.5 |
| 10 | 6.5 | 50.3 | 47.3 | 43.8 | 40.8 | 25.0 |
| 16 | 8.2 | 47.3 | 44.3 | 39.7 | 36.7 | 25.0 |
| 20 | 9.3 | 45.8 | 42.8 | 37.7 | 34.7 | 25.0 |
| 25 | 10.4 | 44.3 | 41.3 | 35.8 | 32.8 | 24.3 |
| 31.25 | 11.7 | 42.9 | 39.9 | 33.9 | 30.9 | 23.6 |
| 62.5 | 17.0 | 38.4 | 35.4 | 27.8 | 24.8 | 21.5 |
| 100 | 22.0 | 35.3 | 32.3 | 23.8 | 20.8 | 20.1 |
