Video Transmission Cables

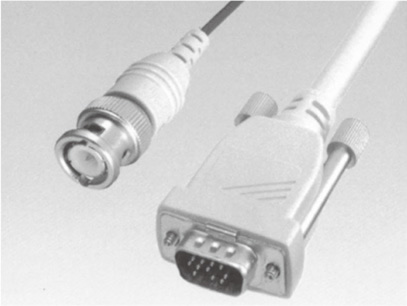

UL 20002 CRT Monitor Cables
Operating temperature 80℃, Operating voltage 30V
Application
For connecting CRT monitors and computer equipment, OA equipment, video equipment, etc.
Features
- Video signals, horizontal/vertical sync signals, etc. are transmitted by thin coaxial wires.
- A special design is also possible by adding an audio line, etc.
- Various connectors are connected with a shielding structure, and PVC integral molding is applied.

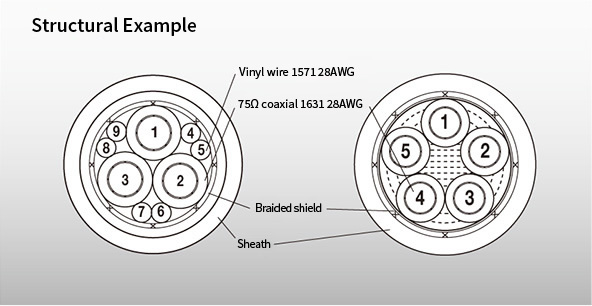

Specification example
| Item | 20002 FG-SV-9 | 20276-HC-CELSV-5×28AWG | ||
|---|---|---|---|---|
| Core No. | 1 to 3 | 4 to 9 | 1 to 5 | |
| Inner conductor | Material | Tinned annealed copper wire | Tinned annealed copper wire | Tinned annealed copper wire |
| Configuration(pcs/mm) | 7/0.125 | 7/0.125 | 7/0.125 | |
| Outer diameter(mm) | 0.38 | 0.38 | 0.38 | |
| Insulator | Material | Crosslinked PE | semi-rigid PVC | Crosslinked PE |
| Outer diameter(mm) | 1.65 | 0.82 | 1.65 | |
| horizontal shield | Material | Tinned annealed copper wire | - | Tinned annealed copper wire |
| Outer diameter(mm) | 1.85 | - | 1.85 | |
| Material | PVC | - | PVC | |
| Outer diameter(mm) | 2.25 | - | 2.25 | |
| braided shield | Material | Tinned annealed copper wire | Tinned annealed copper wire | |
| Outer diameter(mm) | 5.2 | 6.55 | ||
| Sheath | Material | PVC | PVC | |
| Standard finished outer diameter(mm) | 7.0 | 8.2 | ||
| Capacitance | 1kHz(pF/m) | 61±6 | - | 61±6 |
| Characteristic impedance | 10MHz(Ω) | 75±5 | - | 75±5 |
| Standard attenuation | 10MHz(dB/km) | 76 | . | 76 |

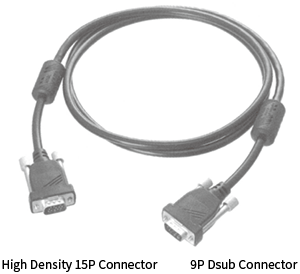

Built-in data line filter
