Video Camera Cables

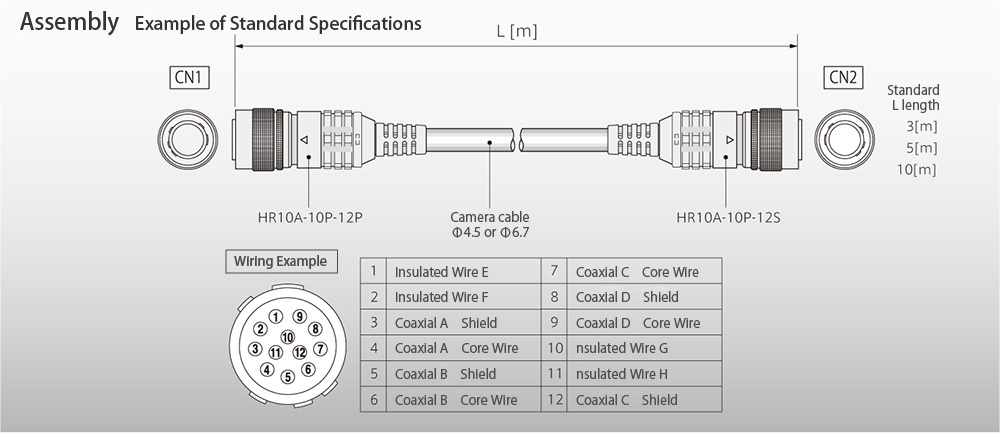

CCD Camera Cable
Application
For connecting small devices such as CCD cameras
Features
- By combining conductor materials and insulating materials, we also support high bending applications for FA applications.
- It is also possible to configure the cable using even finer sizes than the standard configuration.
75 Ω coaxial cable standard configuration example
| AWG size | Conductor configuration(pcs/mm) | Coaxial outer diameter(mm) | Attenuationat 10KHz[dB/10m] |
|---|---|---|---|
| 28 | 7/0.13 | 2.25 | 0.87 |
| 30 | 7/0.10 | 1.90 | 1.09 |
| 32 | 7/0.08 | 1.50 | 1.31 |
Signal line/Power line Standard configuration example
| AWG size | Conductor configuration(pcs/mm) | Coaxial outer diameter(mm) | Attenuationat 10KHz[dB/10m] |
|---|---|---|---|
| 24 | 11/0.16 | 1.24 | 0.91 |
| 26 | 12/0.12 | 0.90 | 1.49 |
| 28 | 7/0.125 | 0.78 | 2.25 |

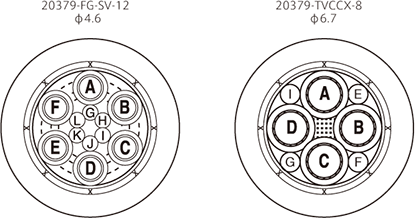

Structural example
