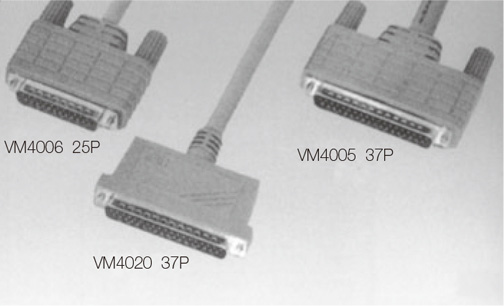

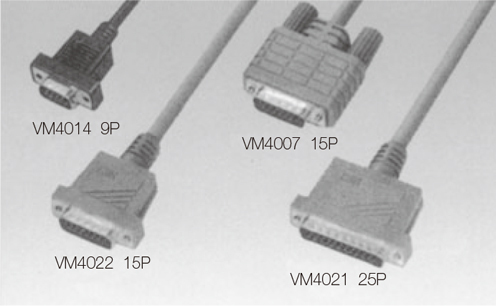

Interface Cable for Computer
Molded interface cable with EMI suppression
Dsub Connector
Application
Inter-equipment connection cable for FCC noise regulation countermeasures
Features
- This is an integrally molded interface cable with high-density shielding applied to the UL standard certified cable, and the Dsub connector section is also shielded with shielding tape. Please consider it as a countermeasure against FCC noise regulations.
- The connection between the connector pin and the conductor is fixed with hard resin, and a cable with a PVC sheath is used, so it exhibits excellent resistance to bending, twisting, pulling, etc.

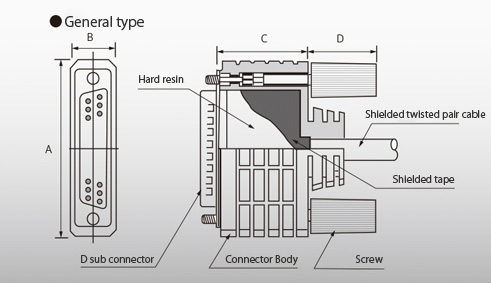

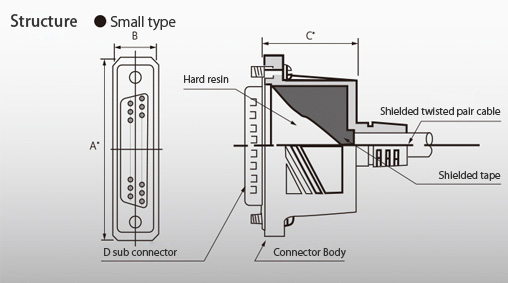

Dimensions (mm)
| A | B | C | D | |
|---|---|---|---|---|
| 37P | 75.5,70.3* | 15 | 32 | 20 |
| 25P | 59,54* | 15 | 32 | 20 |
| 15P | 46,41* | 15 | 32,31* | 20 |
| 9P | 34 | 14 | 25.5 | - |
Cable specification
| D-sub connector | standard cable | Outer diameter (mm) |
|---|---|---|
| 37P | Shielded twisted pair cable UL2464-SR-VALSV-19P×28AWG | 10.3 |
| - | ||
| 25P | Shielded twisted pair cable UL2464-SR-VALSV-13P×28AWG | 8.4 |
| 15P | Shielded twisted pair cable UL2464-SR-VALSV-8P×28AWG | 7.5 |
| - | ||
| 9P | Shielded twisted pair cable UL2464-VSV-5P×28AWG | 5.8 |
