Interface Cable for Computer

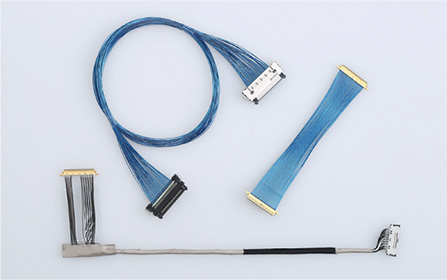

LCD cable assembly
Liquid Crystal Display
- Example of cable used
-
UL style 10064 (single-core coaxial cable)
Applicable standard .... UL 758
Rated voltage .... 30 V or less
Rated temperature .... 105°C or less
Application
For internal wiring of notebook PCs, etc.
Features
- Suitable for connection between LCD (liquid crystal display) and motherboard.
- Low-skew LVDS, TMDS, etc. are transmitted by twisted pair cable or micro coaxial cable.
- This product has impedance, delay time, skew, and eye pattern characteristics.
- RoHS compliant

Item | coaxial for LCD | |
---|---|---|
Conductor | Size (AWG) | 40 |
Composition (pcs/mm) | 7/0.03 | |
Material | T-CA | |
Insulator | Material | PFA |
Shield | Material | TA |
Jacket | Material | PET |
Outer diameter (mm) | 0.35 | |
Maximum conductor resistance | 20℃ (Ω/m) | 4.7 |
Standard capacitance | 1kHz (pF/m) | 100 |
standard impedance | TDR *1 (Ω) | 50 |
Standard attenuation | 10MHz (dB/m) | 0.46 |
T-CA: Tin-plated alloy wire, TA: Tin-plated annealed copper wire, PET: Polyester tape
*1 TDR impedance measurement point is 1 ns.
*1 TDR impedance measurement point is 1 ns.
