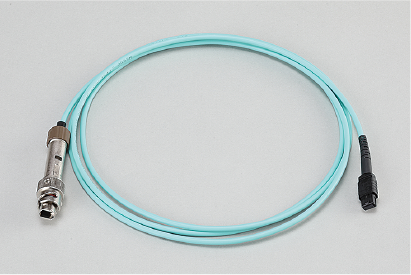

ARIB standard for 4K/8K Optical connector (equivalent)

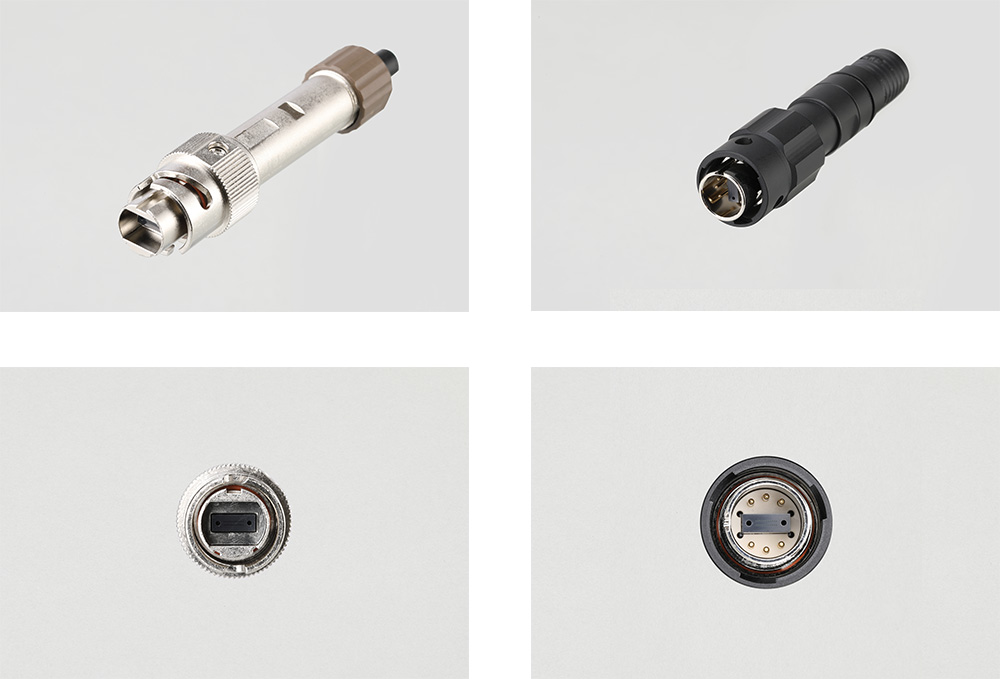

- STD-B58 or equivalent mating plug
<Connector made by TAJIMI ELECTRONICS CO., LTD.>
- receptacle connector
Application
・Interface between 4K/8K broadcasting equipment
・Medical equipment
Features
This is an optical waterproof connector equivalent to the interface standard between ultra-high-definition television signal studio equipment (STD-B58) standardized by the Association of Radio Industries and Businesses (ARIB) (capable of transmitting 10G link signals).
Super Hi-Vision uncompressed signals can be transmitted over a 24-fiber optical signal cable. It can also transmit 24-core optical signals and electrical signals at the same time.
(The ARIB standard is not compliant)
Specification
| ARIB standard optical connector for 4K/8K (equivalent product) | |
|---|---|
| Optical core wire(mm) | 24cores φ4.0 |
| Applicable optical fiber | GIー50/125(OM3) |
| Transmission band(MHz/KM) | 1500 |
| Maximum transmission distance(m) | 300 |
| Polishing type | Zero Degree PC (Right Angle PC) |
| connection loss(dB) | 0.7 or less (LED λ=850nm) |
| allowable bending radius(m) | 30 |
