Optical termination box/Optional products for optical camera cables
Optical termination boxes
3U units

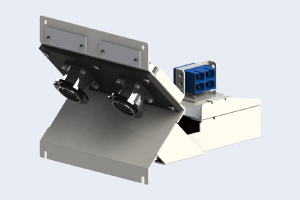

3U unit (OP-3-PR shown)
| Name | Model | Connector |
|---|---|---|
| 3U frame | OP-3U | |
| 3U unit | OP-3-FX | FXW ×2 |
| OP-3-ED | EDW ×2 | |
| OP-3-PR | OPS2404-PR ×2 | |
| OP-3-R | OPS2402-R ×2 |
Unit attachments: Fusion cord (with SC connector), fusion sleeve, nylon connector, terminal, ground wire
Unit mounting example
Box for multi-core cables

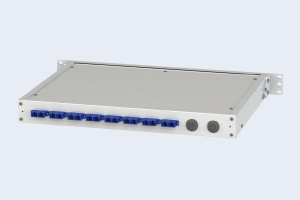

Termination box for 1U multi-core cable
| Name | Model | Number of SC connectors |
|---|---|---|
| Optical termination box |
SBX-T44-420-330H-C2-SC12 | 12 ports |
Attachments: Fusion cord (with SC connector), fusion sleeve
Box for optical
camera cables
2
4
8
| Name | Model | Number of incoming optical cables |
|---|---|---|
| Optical termination box |

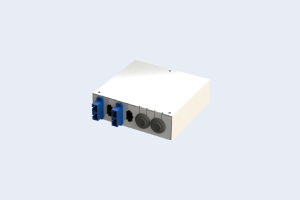

SBX-T40-120-128H-C2-F2-SC4 | 2 |

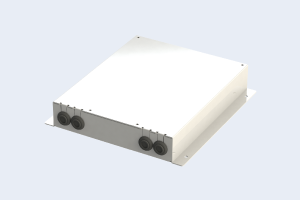

| SBX-B44-238-250H-C4-R4-SC4 | 4 | |

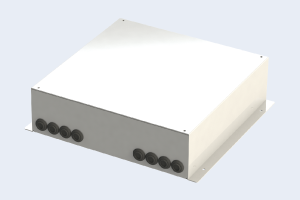

| SBX-B88-338-300H-C8-R8-SC8 | 8 |
Attachments: Fusion cord (with SC connector), fusion sleeve, nylon connector, terminal, ground wire

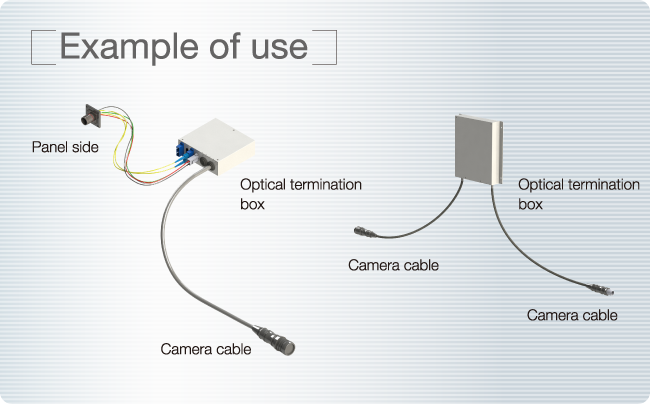

Optional products for optical camera cables
Cable bags
| Product | Dimensions(φ×H)mm | Remarks |
|---|---|---|

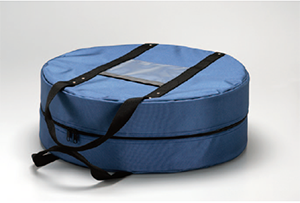

| CLEAR POCKET 480×150 | 480×150 | f9.2 Can hold 50 m. One-hand type |
| CLEAR POCKET 600×200 | 600×200 | f9.2 Can hold 100 m. One-hand type |
| CLEAR POCKET 700×250 | 700×250 | f9.2 Can hold 200 m. Both-hands type |
• Standard color: Blue
• These products can be made according to your specifications.
• These products can be made according to your specifications.
Connector cover
* Specifications are subject to change without prior
notice for improvement purposes.

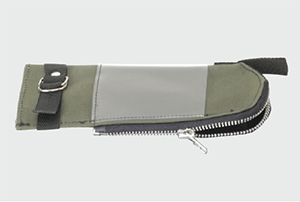

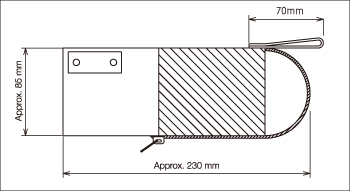

• Protective cover for connectors.
• These products can be made
according to your specifications.
• These products can be made
according to your specifications.
