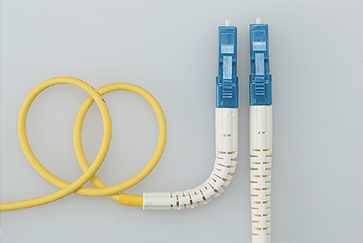

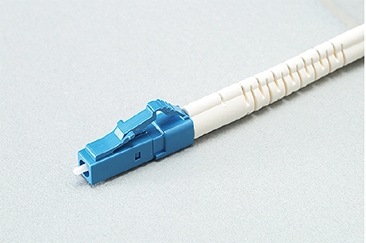

LC connector (flex angle boot) type
Application
・On-premise wiring for optical equipment
・Relay rack for optical communication equipment, etc.
Features
1
The push type makes it easy to attach and detach the connector.2
Compact and lightweight, high-density mounting is possible.3
It is possible to correspond to the bending radius (15 mm) of the optical cord.4
The boots can be bent and used in tight spaces.5
Optical cords are flame retardant. (equivalent to UL VW-1)6
Can be used in high temperature environments.
Type name | SM-10-C-FALC-FALC-□M | |
---|---|---|
Optical fiber type | CM(single mode) | |
Mode field diameter(μm) | 9.2(λ=1310nm) | |
Cladding diameter(μm) | 125 | |
Number of cores (cores) | 1 | |
Cord outer diameter(mm) | 0.9 | |
Cord outer diameter(mm) | 2.0 | |
Mass(kg/km) | 4.0 | |
Allowable bending radius(mm or more) | 15 or more |
Characteristic | ||
---|---|---|
Connection loss(dB) | 0.5 or less | |
Return loss(dB) | 45 or more | |
End face finish | AdPC |
Operating environment conditions | ||
---|---|---|
Operating temperature limit | -20 to 85℃ | |
Storage temperature range | -40 to 70℃ | |
Operating humidity range | RH 90% or less |
