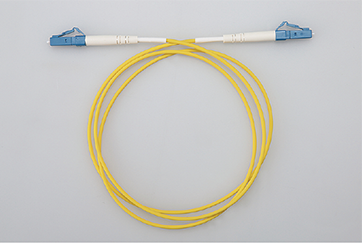

LC connector (tube boot) type
Application
・On-premise wiring for optical equipment
・Relay rack for optical communication equipment, etc.
Features
1
The push type makes it easy to attach and detach the connector.2
Compact and lightweight, high-density mounting is possible.3
It is possible to correspond to the bending radius (30 mm) of the optical cord.4
It is possible to bend from the position (about 40 mm) after installation.- *Since it is a tube type and is lightweight, the strength at the base is slightly weakened. Please be careful when handling when putting on and taking off.
| Type name | SM-10-C-LC-LC-□M-Tube boot | |
|---|---|---|
| Optical fiber type | SM(single mode) | |
| Mode field diameter(μm) | 9.2(λ=1310nm) | |
| Cladding diameter(μm) | 125 | |
| Number of cores (cores) | 1 | |
| Cord outer diameter(mm) | 0.9 | |
| Cord outer diameter(mm) | 2.0 | |
| Mass(kg/km) | 3.7 | |
| Allowable bending radius(mm or more) | 30 or more | |
| Characteristic | ||
|---|---|---|
| Connection loss(dB) | 0.5 or less | |
| Return loss(dB) | 45 or more | |
| End face finish | AdPC | |
| Operating environment conditions | ||
|---|---|---|
| Operating temperature limit | -20 to 65℃ | |
| Operating humidity range | RH 90% or less | |
