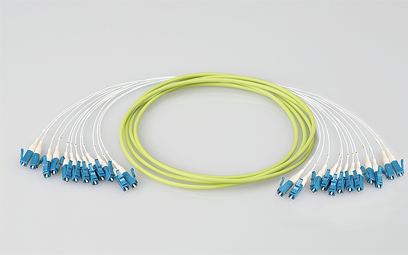

LC connector (multi-fiber optical cord) ①LC connector type
Application
・Circuit wiring for public communication
・Transmission device wiring for switching equipment
Features
1
A maximum of 12 cores can be wired with one optical cord.
2

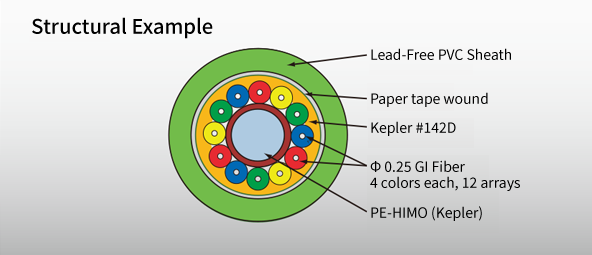

The tension member centered on the optical cord is reinforced with Kevlar material (flexibility) and (lightening) and can be used.
3
The diameter of the optical cord is as thin as (Φ3.0mm), so it can be used even in a complicated wiring space.
4
The LC connector can be easily attached and detached with a push type.
5
Fiber wiring for 12 cores can be done at once.
Specification
| Type name① | 12G-50-C-LC-LC-□M |
|---|---|
| Optical fiber type | GI(multi mode) |
| Mold field diameter(μm) | 50(λ＝0.85μｍ LED) |
| Clad diameter (μm) | 125 |
| Cord material | UV resin |
| Cord outer diameter (mm) | 0.25 |
| Cord color | 4 colors each (white, yellow, red, blue) |
| Reinforcement | aramid fiber |
| Stranded outer diameter(mm) | 1.85 (paper roll) |
| Sheath material | Lead-free PVC |
| Sheath thickness (mm) | 0.575 |
| Outer diameter of sheath (mm) | 3.00(Max 3.15) |
| Sheath color | Wakakusa (05F) |
Optical code characteristics (λ=0.85μm)
| Transmission loss (dB/Km) | 3.0 or less |
|---|---|
| Allowable tension (reference value) N (kgf) | 58(6) or less |
| Minimum bending radius (mm) | 30 |
Operating environment conditions
| Operating temperature limit | -20 to 65℃ |
|---|---|
| Operating humidity range | RH90％ or less |
Product characteristics(λ＝0.85μｍ)
| Connection loss (dB) | 0.5 or less |
|---|---|
| Connection loss (dB) | 25 or more |
| End face finish LC |
AdPC |
MPO |
AdPC |
