Optical Camera Cable
- Model: 2SM-9.2-37.5
- Model: 2SM-16-37.5
Overview
This is a broadcasting camera cable established by ARIB (Association of Radio Industries and Businesses) .
Application

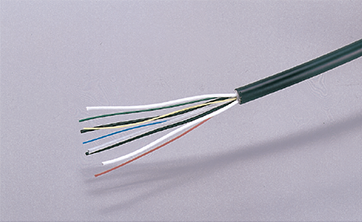

- φ9.2 has high versatility and is widely used for fixed wiring, relay cables, patch cables, etc., including handy camera cables .

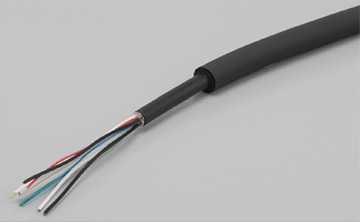

- φ16 is used for large studio camera cables. This cable has a thick φ9.2 sheath and a large outer diameter so that it does not get caught in the pedestal .
| Model | 2SM-9.2-37.5 | 2SM-16-37.5 | |||
| Core number | 1, 2 | 1, 2 | |||
|---|---|---|---|---|---|
| Wire | SM-9.5/125 | SM-9.5/125 | |||
| Cord | Outline (mm) | 0.9 | 0.9 | ||
| by color | blue, yellow | blue, yellow | |||
| Core type | power line | Signal line | power line | Signal line | |
| Core number | 3～6 | 7, 8 | 3～6 | 7, 8 | |
| Conductor | Cross-sectional areai(mm²) | 0.525 | 0.18 | 0.525 | 0.18 |
| Configuration(pcs/mm) | 21/0.18T | 7/0.18T | 21/0.18T | 7/0.18T | |
| Outline(mm) | 0.96 | 0.54 | 0.96 | 0.54 | |
| Insulator | thickness(mm) | 0.42 | 0.30 | 0.42 | 0.30 |
| Outline(mm) | 1.80 | 1.14 | 1.80 | 1.14 | |
| by color | black white | Red-green | black white | Red-green | |
| Tensile measures | Material/outer diameter(mm)/color | steel wire/2.40/natural color | steel wire/2.40/natural color | ||
| Shield | kinds | braid | braid | ||
| Sheath | Outline(mm) | 9.2(max9.5) | 16(max16.5) | ||
| Color | Standard color: black | Standard color: black | |||
| approximate mass | kg/km | 114 | 291 | ||

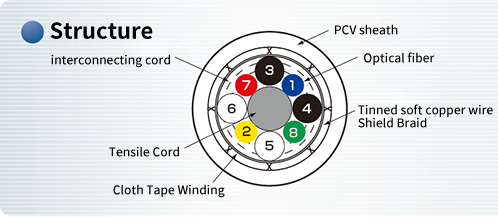

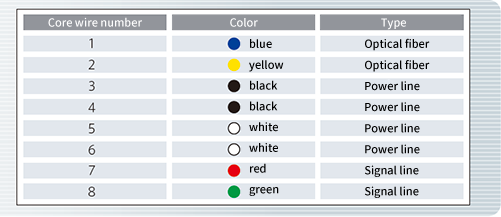

| Core type | optical fiber | power line | Signal line |
|---|---|---|---|
| Core number | 1,2 | 3-6 | 7,8 |
| Working voltage (AC V) | － | 300 or less | 125 or more |
| Operating temperature(℃) | 60 or less | ||
| Test voltage(AC V/min) | － | 1000 | 500 |
| Insulation resistance(MΩ・km) | － | 10000 or more | 10000 or more |
| Conductor resistance(20℃ Ω/km) | － | 37.5 or less | 113 or less |
| Transmission loss(dB/km) | （λ＝1.3μm）0.5 or less | － | － |
