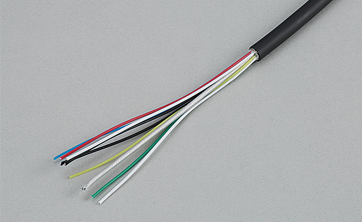

Optical camera cable 6.8mm type
- Model: 2SM-6.8-91.0
Application
This cable is lighter than ARIBφ9.2 general-purpose products.
Features
- This is a cable with a thin φ9.2 sheath for general-purpose products and a thin power wire to reduce weight.
| Model | 2SM-6.8-91.0 | ||
| Core number | 1, 2 | ||
|---|---|---|---|
| Wire | SM-9.5/125 | ||
| Cord | Outline (mm) | 0.9 | |
| by color | blue, yellow | ||
| Core type | power line | Signal line | |
| Core number | 3-6 | 7, 8 | |
| Conductor | Cross-sectional areai(mm²) | 0.22 | 0.18 |
| Configuration(pcs/mm) | 11/0.16T | 7/0.18T | |
| Outline(mm) | 0.62 | 0.54 | |
| Insulator | thickness(mm) | 0.265 | 0.30 |
| Outline(mm) | 1.15 | 1.14 | |
| by color | black white | Red-green | |
| Tensile measures | Material/outer diameter(mm)/color | steel wire/2.0/natural color | |
| Shield | kinds | braid | |
| Sheath | Outline(mm) | 6.8（max7.10） | |
| Color | Standard color: black | ||
| approximate mass | kg/km | 68.2 | |
| Core type | optical fiber | power line | Signal line |
|---|---|---|---|
| Core number | 1,2 | 3-6 | 7,8 |
| Working voltage (AC V) | - | 300 or less | 125 or less |
| Operating temperature(℃) | 60 or less | ||
| Test voltage(AC V/min) | - | 1000 | 500 |
| Insulation resistance(MΩ・km) | - | 10000 or more | 10000 or more |
| Conductor resistance(20℃ Ω/km) | - | 91.0 or less | 113 or less |
| Transmission loss(dB/km) | （λ＝1.3μm）0.5 or less | - | - |
