Optical camera cable processing
Optical composite camera cable processing (Tajimi specifications)

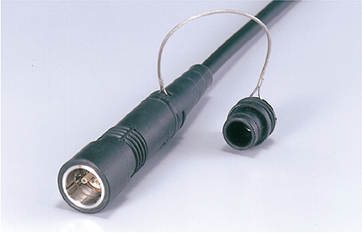

- OPS2401-P

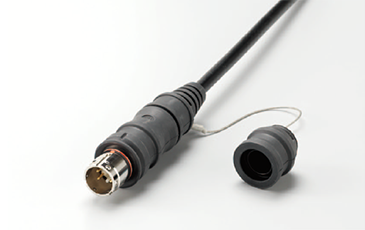

- OPS2403-J
| Shape | Product name | Cable | Length(m) |
|---|---|---|---|
|
2SM-9.2-37.5-OPS-P-J-10M | 2SM-9.2-37.5 | 10 |
| 2SM-9.2-37.5-OPS-P-J-20M | 20 | ||
| 2SM-9.2-37.5-OPS-P-J-50M | 50 | ||
| 2SM-9.2-37.5-OPS-P-J-100M | 100 | ||
| 2SM-16-37.5-OPS-P-J-30M | 2SM-16-37.5 | 30 | |
| 2SM-16-37.5-OPS-P-J-50M | 50 |
Optical composite camera cable processing (LEMO specification)

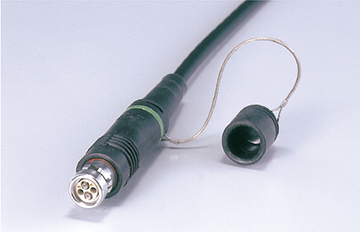

- FUW

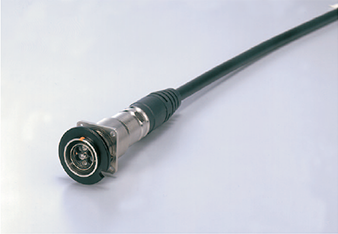

- PUW
| Shape | Product name | Cable | Length(m) |
|---|---|---|---|
|
2SM-9.2-37.5-FUW-PUW-10M | 2SM-9.2-37.5 | 10 |
| 2SM-9.2-37.5-FUW-PUW-20M | 20 | ||
| 2SM-9.2-37.5-FUW-PUW-50M | 50 | ||
| 2SM-9.2-37.5-FUW-PUW-100M | 100 | ||
| 2SM-16-37.5-FUW-PUW-30M | 2SM-16-37.5 | 30 | |
| 2SM-16-37.5-FUW-PUW-50M | 50 |
・OPS2401-P and FUW are connected to the camera head side.
・Connect OPS2403-J and PUW to the CCU (base station) side.
・Connectors can be identified by coloring (green, red, blue, black, not attached).
・The connector is made of stainless steel.
・Connect OPS2403-J and PUW to the CCU (base station) side.
・Connectors can be identified by coloring (green, red, blue, black, not attached).
・The connector is made of stainless steel.
Optical camera conversion cable processing (Tajimi ⇔ LEMO)
| Shape | Product name | Cable | Length(m) |
|---|---|---|---|
|
2SM-9.2-37.5-P-PUW-2M | 2SM-9.2-37.5 | 2 |
| 2SM-9.2-37.5-P-PUW-5M | 5 | ||
|
2SM-9.2-37.5-FUW-J-2M | 2SM-9.2-37.5 | 2 |
| 2SM-9.2-37.5-FUW-J-5M | 5 |
・Tajimi connectors and LEMO connectors are not compatible.
・If the optical connector of the device used is different, a conversion cable is required.
・If the optical connector of the device used is different, a conversion cable is required.

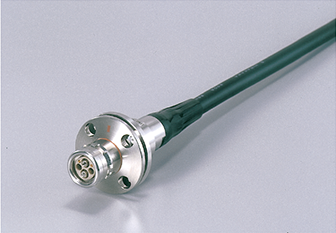

Optical special connector processing
- OPS2406-PP
- OPS2405-PJ
- FMW
- PBW
・The connector is made of stainless steel.
・Connectors can be identified by coloring (green, red, gray, black, not attached).
・There are no boots for FMW and PBW.
・OPS2406-PP and OPS2405-PJ do not have boots.
・We can handle individual specifications such as connectors to be combined, so please contact us.
・Connectors can be identified by coloring (green, red, gray, black, not attached).
・There are no boots for FMW and PBW.
・OPS2406-PP and OPS2405-PJ do not have boots.
・We can handle individual specifications such as connectors to be combined, so please contact us.

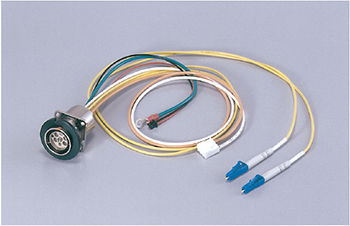

Optical composite harness (Tajimi, LEMO specification)
OPS2404-PR
| Shape | Product name | Length(m) |
|---|---|---|
|
OPS2404-PR-LC-1M | 1 |
| OPS2404-PR-LC-2M | 2 |

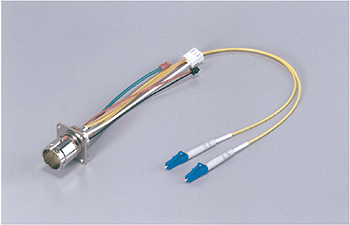

OPS2402-R
| Shape | Product name | Length(m) |
|---|---|---|
|
OPS2402-R-LC-1M | 1 |
| OPS2402-R-LC-2M | 2 |
FXW
| Shape | Product name | Length(m) |
|---|---|---|
|
FXW-SC-1M | 1 |
| FXW-SC-2M | 2 |

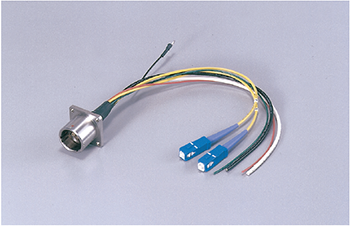

EDW
| Shape | Product name | Length(m) |
|---|---|---|
|
EDW-SC-1M | 1 |
| EDW-SC-2M | 2 |
・OPS2404-PR and OPS2402-R are Tajimi connectors made of stainless steel.
・FXW and EDW are stainless steel connectors made by LEMO.
・OPS2404-PR and FXW are used for CCU and external terminal boards.
・OPS2402-R and EDW are used on the camera head side.
・All photos are reference examples of processing. We will respond to your desired specifications such as the parts used and dimensions.
・FXW and EDW are stainless steel connectors made by LEMO.
・OPS2404-PR and FXW are used for CCU and external terminal boards.
・OPS2402-R and EDW are used on the camera head side.
・All photos are reference examples of processing. We will respond to your desired specifications such as the parts used and dimensions.
