Fiber Optic Cable

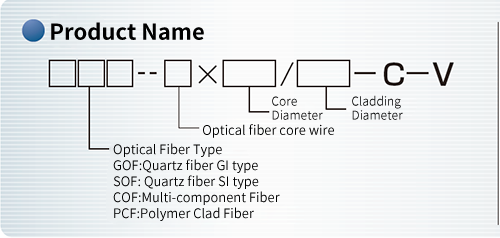

Cord assembly type optical fiber cable

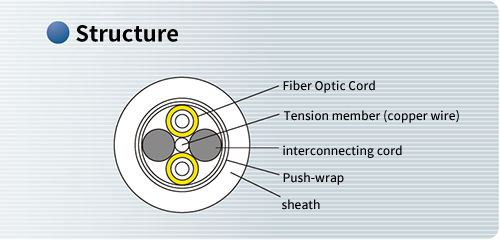

A cord-assembled optical fiber cable is a cable in which optical fiber single-core cords are assembled, so it has excellent mechanical strength and sufficient flexibility. Connectors are easily attached to the cable ends.
| Item | Specification | |||||
|---|---|---|---|---|---|---|
| Number of fibers | 2・4 | 6 | 8 | 10 | 12 | 16 |
| Outline (mm) | 9 | 10 | 12 | 13 | 15 | 17 |
| Approximate mass (kg/km) | 80 | 92 | 130 | 160 | 190 | 260 |
| Allowable tension (N) | 440 | 440 | 790 | 790 | 790 | 790 |
| Allowable bending radius (mm) | 100 | 100 | 120 | 130 | 150 | 170 |
*Optical fiber: φ2.0 cord type
Layer-twisted optical fiber cable

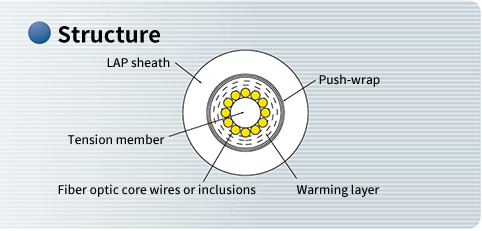

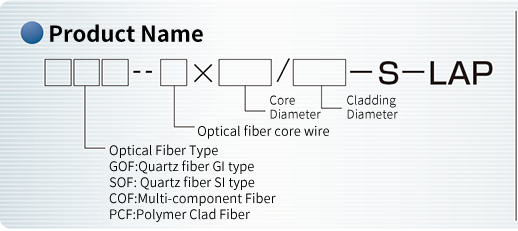

The layer-twisted optical fiber cable has a structure in which the optical fiber lines are arranged around the tension member, and the LAP sheath is used, making it excellent for outdoor use and workability.
| Item | specification |
|---|---|
| Number of fibers | 1 to 12 |
| Outline (mm) | 12 |
| Approximate mass (kg/km) | 120 |
| Allowable tension (N) | 1620 |
| Allowable bending radius (mm) | 120 |

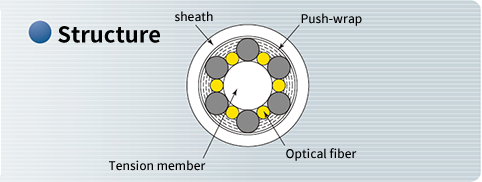

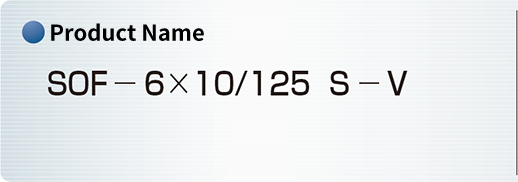

6-core optical fiber cable
| Item | Specification |
|---|---|
| Operating temperature (℃) | 60 or less |
| Outline (mm) | 10 |
| Approximate mass (kg/km) | 90 |
| Allowable tension (N) | 600 |
| Allowable bending radius (mm) | 100 |
