Fiber Optic Cord
- Small diameter, light weight, excellent flexibility.
Suitable for indoor equipment wiring and connections.

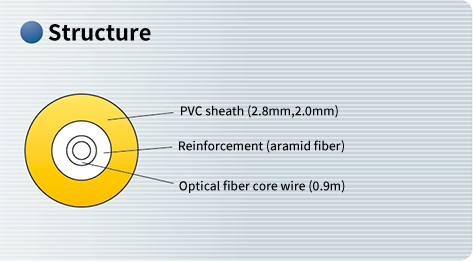

An optical fiber cord is made by adding a tension member (aramid fiber) to an optical fiber core and applying a PVC sheath.
It is small in diameter, lightweight, exhibits excellent flexibility and tensile strength, and can be easily processed with connectors, making it suitable for indoor wiring and connections in equipment .
Application
・Small diameter, light weight, excellent flexibility
・Applicable for wiring and connection in indoor equipment
Features
1
Not affected by electromagnetic induction, crosstalk and lightning.
2
Excellent flexibility and tensile strength.
3
It is a thin and lightweight cord.

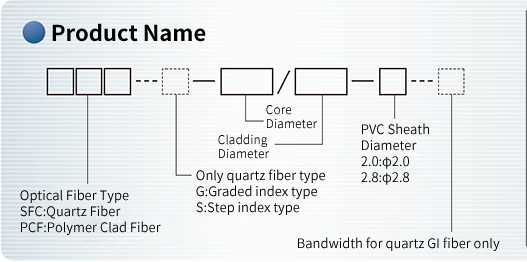

Type name | Refractive index distribution | Material | Core diameterμm | Clad diameterμm | Wavelengthμm | Transmission lossdB/km |
Transmission bandMHz・km | Numerical apertureNA | Approximate masskg/km | Allowable tensionN | Allowable bending radiusmm |
---|---|---|---|---|---|---|---|---|---|---|---|
SFC-G-50/125-500 | GI | quartz glass | 50 | 125 | 1.3 | 1.0 | 500 | 0.2 | 7 (5) |
100 (60) |
30 (30) |
SFC-G-62.5/125 | 62.5 | 0.85 | 3.5 | 160 | 0.275 | ||||||
1.3 | 1.5 | 500 | |||||||||
SFC-S-10/125 | - | 9.5*1 | 1.3 | 0.5 | - | - | |||||
PCF-200/230 | SI | Core, quartz cladding: polymer |
200 | 230 | 0.85 | 7 | 15 | 0.37 |
*1 Mode field diameter
in ( ) is φ2.0 code
in ( ) is φ2.0 code

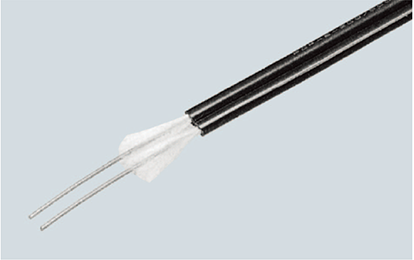

Item | Specification | |
---|---|---|

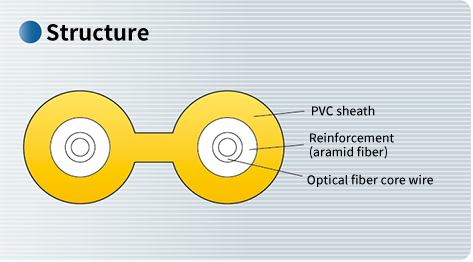

Outline (mm) | 2.0×4.0 | 2.8×5.6 |
Approximate mass (kg/km) | 10 | 14 |
Allowable tension (N) | 120 | 200 |
Allowable bending radius (mm) | Minor axis direction 30 Major axis direction 60 |
