FINE AND SUPER FINE COAXIAL CABLES, ASSEMBLIES
For internal wiring of PCs, digital appliances and medical equipment
- High tensile strength, high electrical conductivity and excellent mechanical properties are achieved by using a special alloy wire conductor.
- Fluororesin is used for the insulator and outer covering, so it has excellent chemical resistance, flame resistance, and heat and cold resistance.
- UL standard products are available.

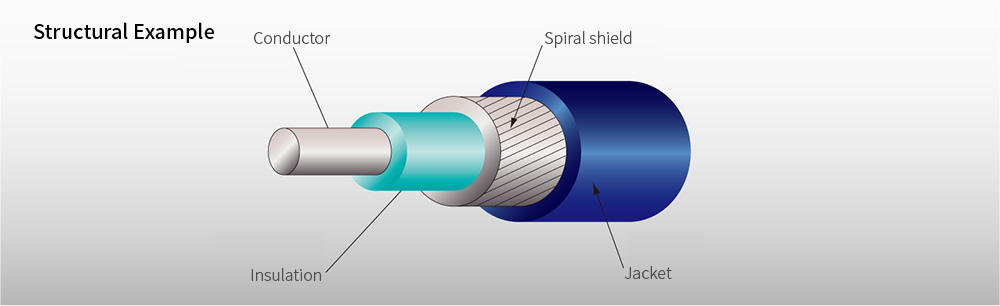

Structure and performance
| Item | Micro coaxial | Micro coax | |||||
|---|---|---|---|---|---|---|---|
| Conductor | Size(AWG) | 40 | 42 | 44 | 46 | 48 | 50 |
| Configuration (pcs/mm) | 7/0.03 | 7/0.025 | 7/0.020 | 7/0.016 | 7/0.012 | 3/0.016 | |
| Material | T-CA | AG-C | AG-C | ||||
| Insulator | Material | PFA | PFA | PFA | |||
| Shield | Material | TA | T-CA | AG-C | |||
| Jacket | Material | PET | PFA | PFA | |||
| Outer diameter (mm) | 0.35 | 0.32 | 0.28 | 0.21 | 0.18 | 0.16 | |
| Maximum conductor resistance 20℃(Ω/m) | 5.0 | 7.5 | 10.5 | 17.5 | 33.0 | 41.6 | |
| Standard capacitance 1kHz(pF/m ) | 110 | 110 | 110 | ||||
| Standard impedance TDR(Ω)*1 | 50 | 50 | 50 | 50 | 50 | 50 | |
| Standard attenuation 10MHz(dB/m ) | 0.62 | 0.77 | 0.89 | 1.28 | 1.75 | 1.93 | |
*1 TDR impedance measurement point is 1ns.
Hirakawa Ultra-fine/ultra-fine coaxial cable assembly (#40 to #50)
In order to meet the demands of the rapid spread of digital devices, high density, and high functionality, we have established an assembly method using ultra-fine (ultra-fine) coaxial cables through our unique construction method. Cables are connected to commercially available connectors and custom-designed connection boards (printed boards, etc.), and all products are guaranteed before delivery. In addition to procuring parts such as connectors, we will respond to requests from the customer's point of view, such as designing connection boards and making proposals for improving the reliability of connection parts.
- 1.Excellent transmission characteristics
- The terminal processing part is an assembly that does not disturb the coaxial structure as much as possible in order to reduce impedance mismatch. In addition, the narrow pitch connection is useful for space saving. We have our own processing equipment that enables stable assembly.
- 2. Improved design flexibility
- It is also possible to select domestic and overseas connectors that you have specified. We can also undertake custom-designed connection boards that meet customer needs. Furthermore, in order to improve the reliability of the terminal connection part, we will respond to requests such as integrated molding technology using environmentally friendly resin.
- 3. Lower initial cost compared to FPC
- Even if specifications such as cable length and number of core wires are changed, there is no high initial cost like FPC, and it is possible to respond flexibly and speedily.
- 4. Excellent product assurance system
- In addition to all electrical inspections, it is also possible to guarantee products by implementing impedance measurements.

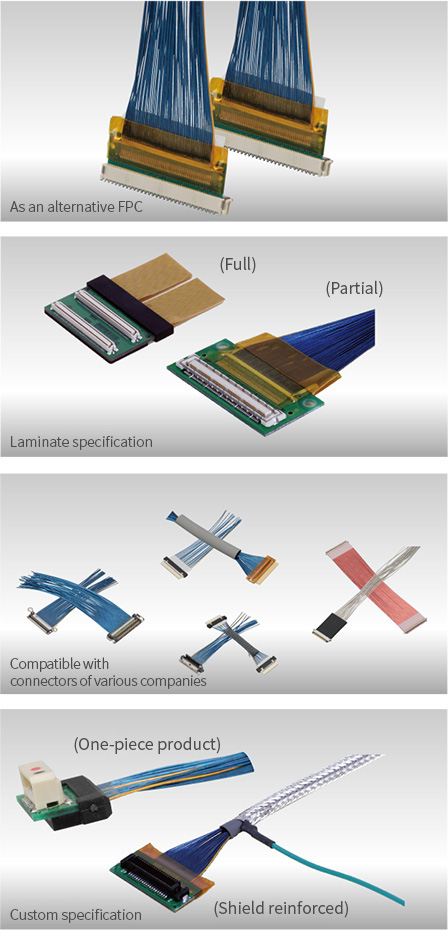

Assembly example
There are various variations other than those listed, so please feel free to contact us.
