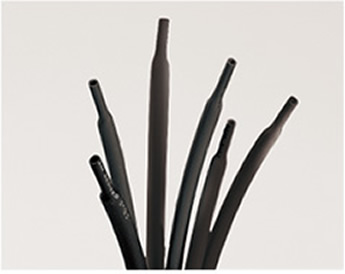

HIT-TUBE EG6
600V rated Heat shrink tube RoHS compliant
Application Standard
◎UL224, CSA C22.2 No.198.1: Flame-retardant grade VW-1
◎Electrical Appliance and Material Safety Law: Flame-retardant test (-F-) registration for
Rating
600V, 125℃
(UL, CSA)
Color
black only
Marking (Example)
C
US E221699 HIT-TUBE EG6 125C 600V VW-1 -F- TMR (Z)
* (Z) indicates dioxin countermeasure product
For insulation of electronic parts and electrical equipment, terminal processing of electronic processing, protection of mechanical properties of connection parts
- Heat-shrinkable tube with heat resistance and shape memory effect by cross-linking flame-retardant polyolefin by electron irradiation.
- Does not contain polybrominated biphenyls and polybrominated diphenyl ethers, which cause dioxins
| Characteristic item | Characteristic value | ||
|---|---|---|---|
| Electrical characteristics | Withstand voltage | before aging | AC 2.5kV/min No destruction |
| after aging | 158℃×168H AC 2.5kV/min No damage | ||
| breakdown voltage | before aging | AC 2.5kV ore more | |
| after aging | 158℃×168H AC 2.5kV or more and residual rate 50% or more | ||
| specific volume resistance | 1014Ωcm ore more | ||
| physical properties | Tensile strength | before aging | 10.4MPa or more |
| after aging | 158℃×168H 7.3MPa or more | ||
| stretch | before aging | 200% or more | |
| after aging | 158℃×168H 100% or more | ||
| Low temperature winding | No cracks at -30℃×1H | ||
| heating winding | No cracks at 250℃×4H | ||
| chemical properties | Combustion quality | Flame retardant, VW-1, -F- | |
| copper corrosive | Humidity 95%, 158℃ x 168H after being left at 23℃ x 24H No discoloration or corrosion of copper |
||
| copper stability | Humidity 95%, Elongation 100% or more at 158℃ x 168H after being left at 23℃ x 24H | ||
| Shrinkage properties | inner diameter shrinkage | over 50 | |
| longitudinal shrinkage | 10% or less | ||

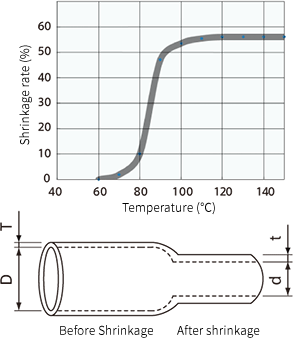

Shrinkage characteristics (reference)
*3 minutes treatment in hot air
| Size(mm) | before contraction | After contraction(130℃×30minutes) | Hirakawa part number | article length(m) | packing quantity(m) | Inner diameter D (mm) |
Standard thickness T (mm) |
Inner diameter d (mm) |
Part minimum thickness t (mm) |
Reel product | 1m item | Reel product | Reel product | 1m item |
|---|---|---|---|---|---|---|---|---|---|
| 0.8 | 1.25 | 0.23 | 0.40 or less | 0.33 | 9131-31 | 9131-51 | 200 | 2000 | 2000 |
| 1.0 | 1.50 | 0.20 | 0.50 or less | 9131-01 | 9131-52 | ||||
| 1.5 | 2.10 | 0.75 or less | 0.36 | 9131-02 | 9131-53 | ||||
| 2.0 | 2.70 | 0.25 | 0.95 or less | 0.44 | 9131-03 | 9131-54 | |||
| 2.5 | 3.20 | 1.20 or less | 9131-04 | 9131-55 | |||||
| 3.0 | 3.80 | 1.45 or less | 9131-05 | 9131-56 | |||||
| 3.5 | 4.30 | 1.70 or less | 9131-06 | 9131-57 | 1000 | 1000 | |||
| 4.0 | 4.70 | 1.95 or less | 9131-07 | 9131-58 | |||||
| 5.0 | 5.70 | 0.30 | 2.40 or less | 0.56 | 9131-08 | 9131-59 | 100 | 500 | |
| 6.0 | 6.70 | 2.90 or less | 9131-09 | 9131-60 | |||||
| 7.0 | 7.70 | 3.40 or less | 9131-10 | 9131-61 | 50 | 400 | 500 | ||
| 8.0 | 8.70 | 3.90 or less | 9131-11 | 9131-62 | |||||
| 9.0 | 9.70 | 4.40 or less | 9131-12 | 9131-63 | |||||
| 10.0 | 10.70 | 4.90 or less | 9131-13 | 9131-64 | 300 | ||||
| 11.0 | 11.70 | 5.40 or less | 9131-14 | 9131-65 | 350 | ||||
| 12.0 | 12.70 | 5.90 or less | 0.69 | 9131-15 | 9131-66 | ||||
| 13.0 | 13.60 | 0.40 | 6.50 or less | 9131-33 | 9131-67 | 200 | |||
| 14.0 | 14.60 | 7.00 or less | 9131-34 | 9131-68 | |||||
| 15.0 | 15.70 | 7.50 or less | 9131-35 | 9131-69 | 250 | ||||
