OPTICAL INTERFACE UNIT
HOL-C BOX series
Portable optical converter
□ HOL-CBX-ARS

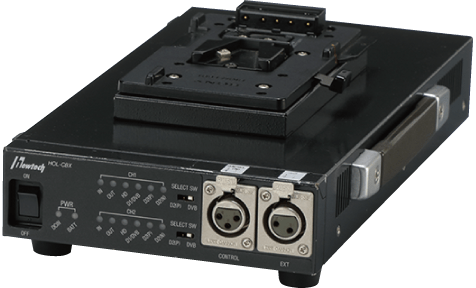

Front

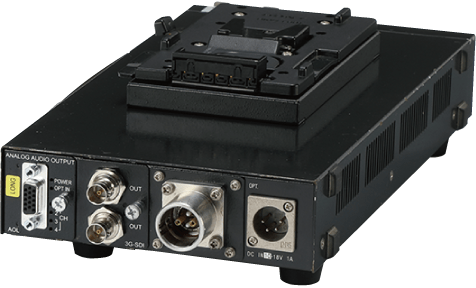

Rear

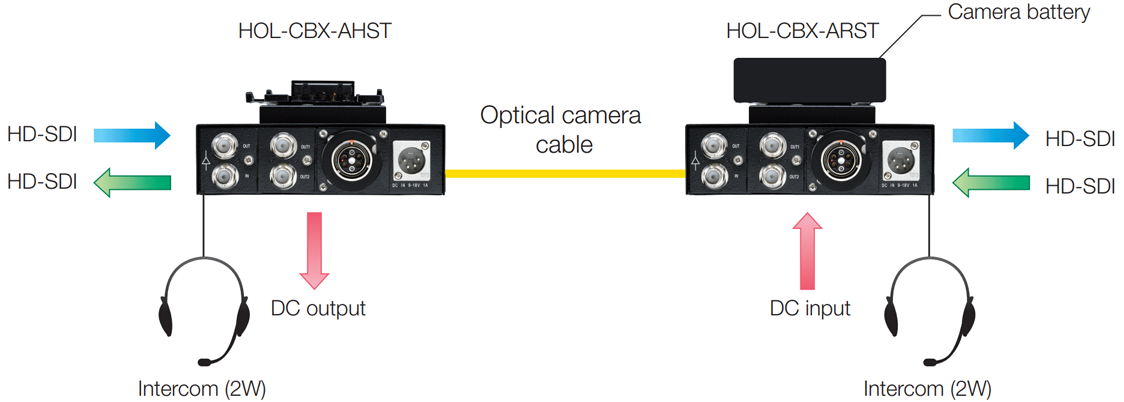

Configuration example
Allows you to change the directionality of the HD-SDI signal simply by rearranging modules.
□ HOL-CBX-S

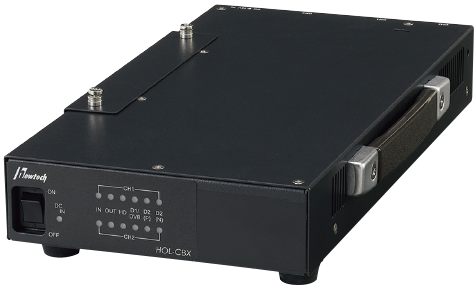

Front

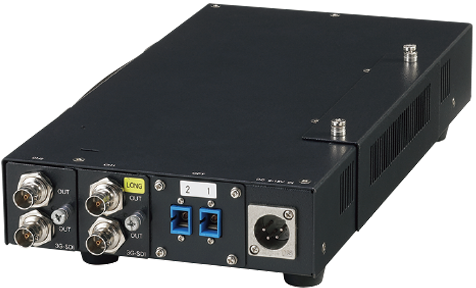

Rear

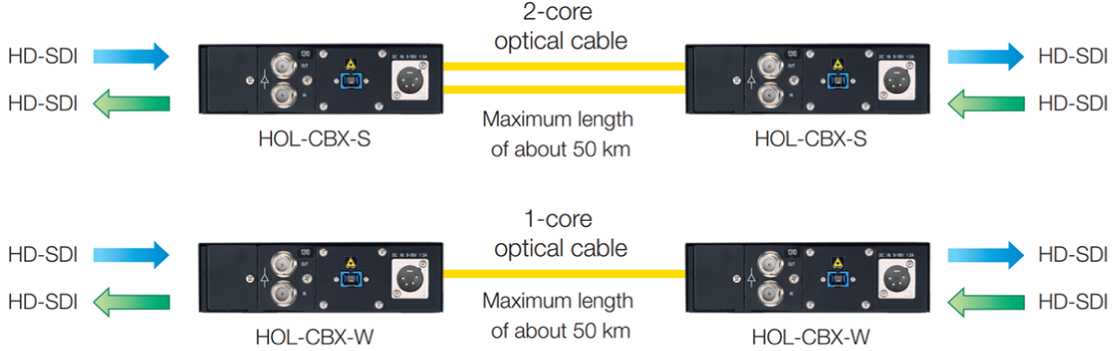

Configuration example
Allows you to change the directionality of the HD-SDI signal simply by rearranging modules.
Usage
・Studio installations
・Television relay
Features
- 1Performs 2-system 3G/HD/SD/DVB-ASI transmission using an optical camera cable.
Provided with an intercom and power supply line connector as standard.
(Either TAJIMI or LEMO optical camera connectors can be selected.) - 2Allows you to change the transmission direction simply by rearranging modules.
- 3Operates on a camera battery (SONY BP series).
- 4Can also operate on a 12-V external power supply.
Frame specifications
| V mount support | V not mounted | ||||
| Optical camera cable transmission (2-core) | Optical fiber transmission | ||||
| LEMO | TAJIMI | SC connector | |||
| Model | HOL-CBX-HS HOL-CBX-RS |
HOL-CBX-HST HOL-CBX-RST |
HOL-CBX-SS | HOL-CBX-S | HOL-CBX-W |
|---|---|---|---|---|---|
| Number of slots | 2 | 2 | |||
| Optical connector | FXW EDW |
OPS-2404-PR OPS-2402-R |
2 SC systems | 1 SC systems WDM |
|
| Applicable wavelength | Any wavelength | Any wavelength | 1310/1550 | ||
| Expansion connector | Control signal (XLR-3 and female) power supply wires (XLR-2 and female) |
- | |||
| Operating temperature | 0 to 45℃ | 0 to 45℃ | |||
| Operating humidity | 30 to 90％ | 30 to 90％ | |||
| Battery | ○ | ○ | - | ||
| Rated power supply | 9 to 18 VDC (XLR-4P) AC adapter HOL-AC-M60 (option) |
9 to 18 VDC (XLR-4P) AC adapter HOL-AC-M60 (option) |
|||
| Weight | 1.5kg | 1.5kg | 1.2kg | ||
| External dimensions | 150（W）×290（D）×43（H）mm * Excluding protrusions |
150（W）×290（D）×43（H）mm * Excluding protrusions |
|||
* For information on the modules to be mounted, see This page. (This also applies to the HOL-CBX series.)
* "LEMO" refers to LEMO S.A. of Switzerland.
* "TAJIMI" refers to TAJIMI ELECTRONICS CO., LTD.
AC/DC adapter specifications (option)
| Model | HOL-AC-M60 |
|
|---|---|---|
| Part number | 73H2-975 | |
| Input voltage | 90 to 240 VAC | |
| Output voltage | 12 VDC ±0.5V / 4.6A | |
| Operating temperature | 0°C to 40°C | |
| Operating humidity | 20％ to 80％ | |
| Attachment | Power cord |
* Not provided with the frame.
The customer is responsible for supplying this, if required.
