Cross-linked polyethylene insulated wires
UL STYLE 3302
XLPE INSULATED WIRE
Application Standard
UL 758Rating
30V, 105℃
Application
Internal wiring of electronic equipment with little wiring space
Features
- Because it is thin, it is advantageous in terms of space factor.
- Flexible.
- Due to the cross-linking, it will not melt when touched by a soldering iron.

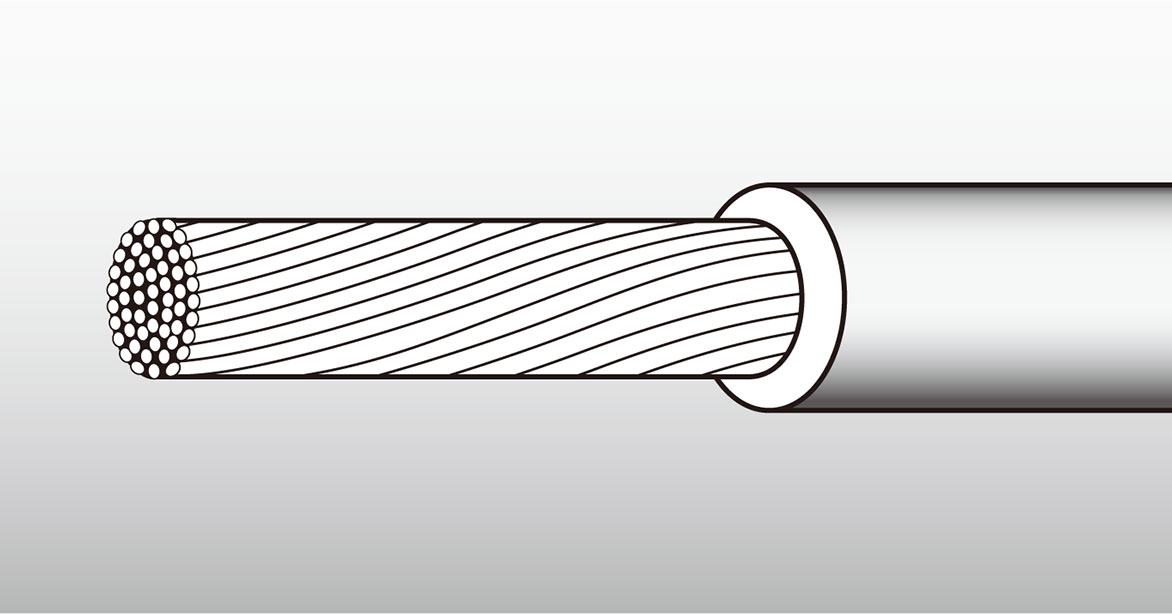

Structure and performance
| UL STYLE | Tinned Copper Cond. | XLPE. Ins. | Max. Cond. Resistance (20℃ Ω/km) |
Allowable Current (for reference) (A) |
Dielectric Strength (AC V/min.) |
|||
|---|---|---|---|---|---|---|---|---|
| Size (AWG) | Composition (No./mm) |
Dia. (mm) | Thick. (mm) | Dia. (mm) | ||||
| 3302 | 32 | 7/0.08 | 0.24 | 0.14 | 0.52 | 559 | 1.3 | 500 |
| 30 | 7/0.1 | 0.30 | 0.20 | 0.70 | 350 | 1.8 | ||
| 28 | 7/0.13 | 0.38 | 0.21 | 0.80 | 229 | 2.5 | ||
| 26 | 7/0.16 | 0.45 | 0.87 | 134 | 3.4 | |||
| 24 | 7/0.2 | 0.60 | 1.02 | 86 | 4.7 | |||
* The reference allowable current value is for a single wire in the air at an ambient temperature of 75℃.
- U S E
- Internal Wiring of Class 2 Circuits in Electronic Equipment.
