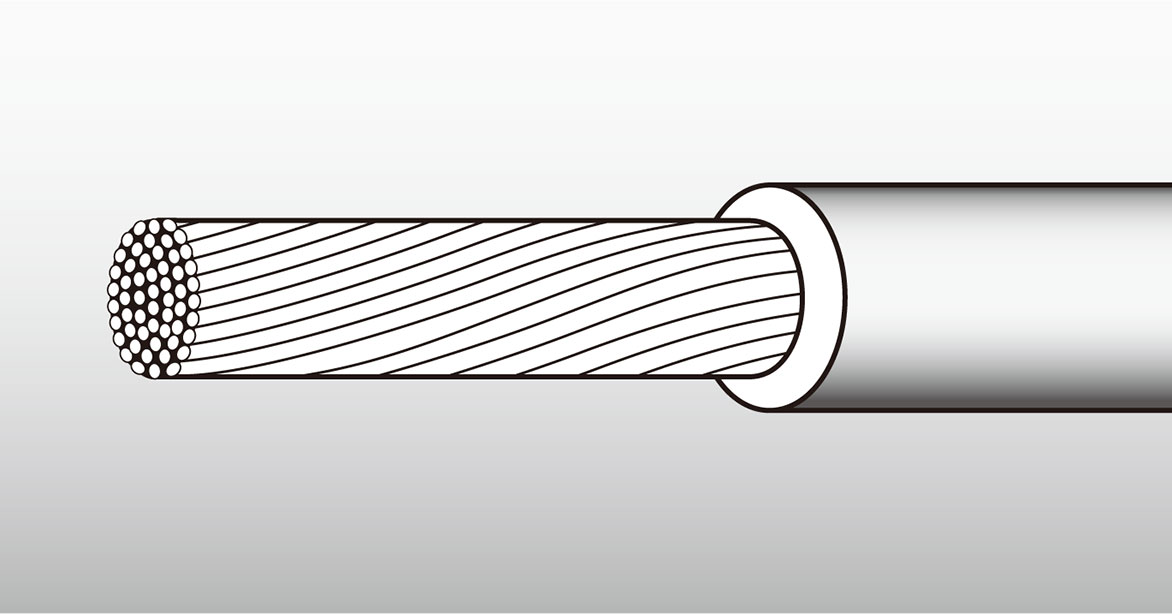

Cross-linked polyethylene insulated wires
UL STYLE 10368, CSA TYPE AWM
XLPE INSULATED WIRE

Application Standard
UL 758CSA C22.2 No.210
Rating
300V, 105℃
Application
Internal wiring of various electrical and electronic equipment
Features
- UL and CSA are shared.
- It can be used for general electrical and electronic equipment under 300V and 105℃.
Structure and performance
UL STYLE CSA TYPE |
Tinned Copper Cond. | XLPE. Ins. | Max. Cond. Resistance (20℃ Ω/km) |
Allowable Current (for reference) (A) |
Dielectric Strength (AC V/min.) |
|||
---|---|---|---|---|---|---|---|---|
Size (AWG) | omposition (No./mm) |
Dia. (mm) | Thick. (mm) | Dia. (mm) | ||||
10368 AWM |
28 | 7/0.13 | 0.38 | 0.255 | 0.89 | 229 | 2.5 | 2000 |
26 | 7/0.16 | 0.45 | 0.275 | 1.00 | 134 | 3.4 | ||
24 | 7/0.20 | 0.60 | 0.27 | 1.14 | 86.0 | 4.7 | ||
22 | 7/0.26 | 0.78 | 1.32 | 50.3 | 6.4 | |||
20 | 7/0.32 | 0.96 | 1.50 | 34.6 | 8.4 | |||
18 | 19/0.26 | 1.30 | 1.84 | 19.3 | 11.0 | |||
16 | 26/0.26 | 1.60 | 2.14 | 14.1 | 15.0 |
* The reference allowable current value is for a single wire in the air at an ambient temperature of 75℃.
- U S E
- Internal Wiring of Appliances.
