Insulated wire
UL STYLE 1571
HEAT-RESISTANT PVC WIRE
Application Standard
UL 758Rating
30V, 80℃
Application
Internal wiring of electronic equipment with little wiring space
Features
- It can be thinned and is highly flexible.
- Because it is thin, it is advantageous in terms of space factor.
- The cross-linked type is difficult to melt even when touched with a soldering iron.

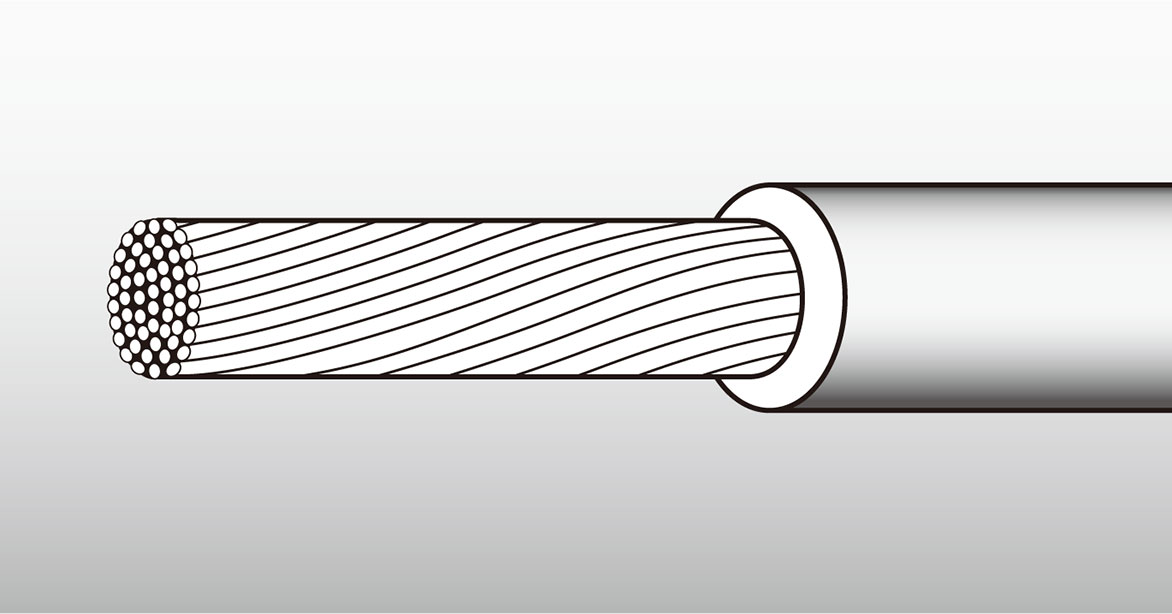

Structure and performance
| UL STYLE | Tinned Copper Cond. | PVC Ins. | Max. Cond. Resistance (20℃ Ω/km) |
Allowable Current (for reference) (A) |
Dielectric Strength (AC V/min.) |
|||
|---|---|---|---|---|---|---|---|---|
| Size (AWG) | Composition (No./mm) |
Dia. (mm) | Thick. (mm) | Dia. (mm) | ||||
| 1571 | 36 | 7/0.05 | 0.15 | 0.18 | 0.50 | 1431 | 0.9 | 500 |
| 32 | 7/0.08 | 0.24 | 0.17 | 0.57 | 559 | 1.3 | ||
| 30 | 13/0.08 | 0.33 | 0.26 | 0.84 | 301 | 1.8 | ||
| 28 | 7/0.13 | 0.38 | 0.22 | 0.82 | 229 | 2.5 | ||
| 26 | 12/0.12 | 0.48 | 0.21 | 0.90 | 145 | 3.4 | ||
| 24 | 11/0.16 | 0.62 | 0.31 | 1.24 | 88.9 | 4.7 | ||
| 22 | 17/0.16 | 0.76 | 0.25 | 1.26 | 57.5 | 6.4 | ||
| 20 | 26/0.16 | 0.95 | 0.28 | 1.50 | 37.6 | 8.4 | ||
| 18 | 41/0.16 | 1.19 | 0.31 | 1.80 | 23.8 | 11.0 | ||
| 16 | 54/0.18 | 1.53 | 0.31 | 2.15 | 14.3 | 15.0 | ||
* The reference allowable current value is for a single wire in the air at an ambient temperature of 50℃.
* There is no indication on the wire for sizes of 30AWG or less.
- U S E
- Internal Wiring of Class 2 Circuits in Electronic Equipment.
