Insulated wire
UL STYLE 10272/11079, CSA AWM

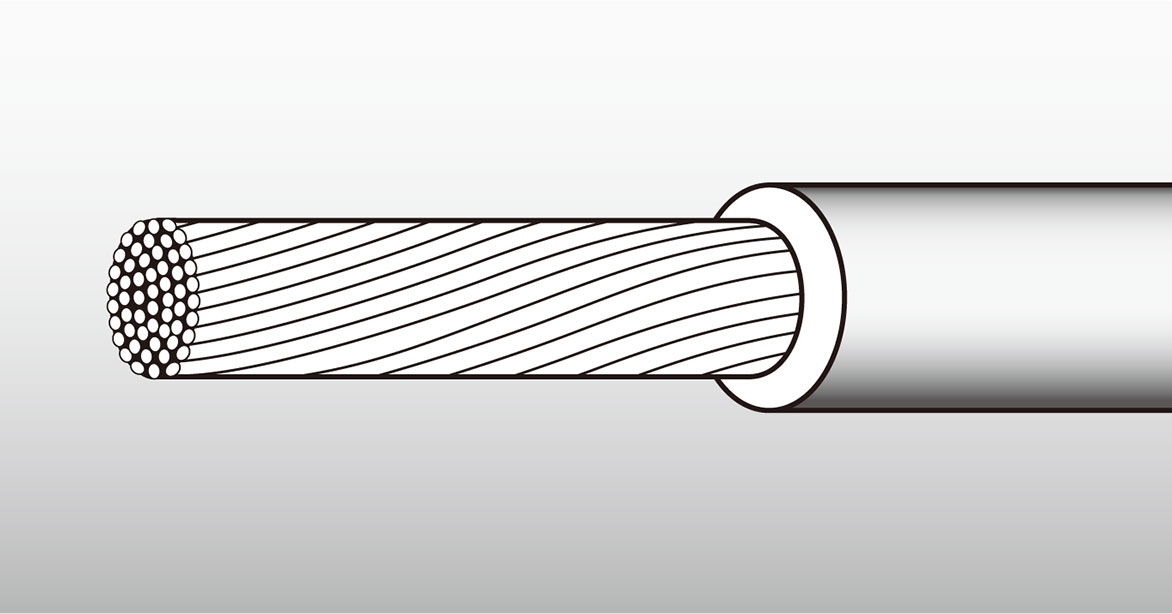

SEMI-RIGID PVC-INSULATED WIRE
Application Standard
UL 758CSA C22.2 No.210
Rating
10272 :150V, 80℃AWM :300V, 80℃
Application
Internal wiring of electronic equipment with little wiring space
Features
- Less thermal deformation due to the use of semi-rigid vinyl.
- Because it is thin, it is advantageous in terms of space factor.
- Excellent mechanical strength due to the use of semi-rigid vinyl.
- Can be used for pressure contact connectors.
Structure and performance
| UL STYLE CSA TYPE |
Tinned Copper Cond. | SRPVC Ins. | Max. Cond. Resistance (20℃ Ω/km) |
Allowable Current (for reference) (A) |
Dielectric Strength (AC V/min.) |
|||
|---|---|---|---|---|---|---|---|---|
| Size (AWG) | Composition (No./mm) |
Dia. (mm) | Thick. (mm) | Dia. (mm) | ||||
| 10272 AWM |
28 | 7/0.13 | 0.38 | 0.23 | 0.84 | 229 | 2.3 | 1500 |
| 26 | 7/0.16 | 0.48 | 0.20 | 0.88 | 134 | 3.1 | ||
| 11079 AWM |
28 | 7/0.13 | 0.38 | 0.17 | 0.76 | 229 | 2.2 | |
| 27 | 7/0.14 | 0.42 | 0.14 | 0.70 | 182 | 2.4 | ||
| 26 | 7/0.16 | 0.48 | 0.15 | 0.78 | 134 | 2.9 | ||
* The reference allowable current value is for a single wire in the air at an ambient temperature of 50℃.
- U S E
- For Further Processing In PVC Jacketed Cables And Internal Wiring Of Electronic Equipment.
