Insulated wire
UL STYLE 10913, CSA TYPE TR-64
HEAT-RESISTANT PVC WIRE
Application Standard
UL 758CSA C22.2 No.127
Rating
10913:300V, 80℃TR-64 :ー, 90℃
Application
Internal wiring of various electrical and electronic equipment
Features
- UL and CSA are shared.
- It can be used for general electric and electronic equipment under 300V and 80℃.
- Since the vinyl insulation thickness is 0.4 mm or more, it can also be used for European sets.

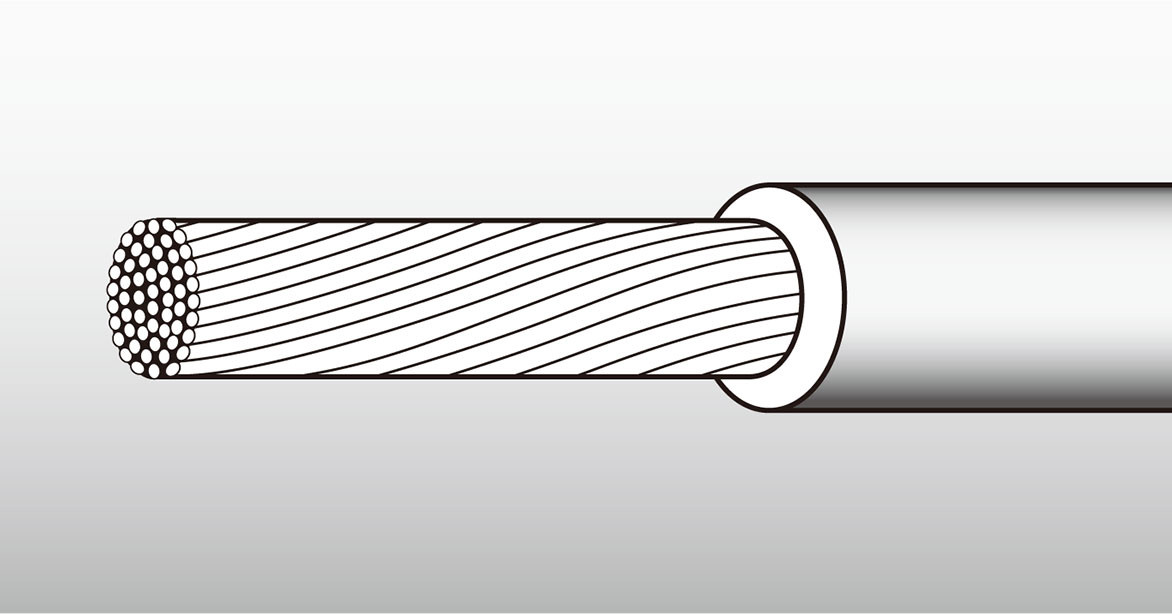

Structure and performance
| UL STYLE CSA TYPE |
Tinned Copper Cond. | PVC Ins. | Max. Cond. Resistance (20℃ Ω/km) |
Allowable Current (for reference) (A) |
Dielectric Strength (AC V/min.) |
|||
|---|---|---|---|---|---|---|---|---|
| Size (AWG) | Composition (No./mm) |
Dia. (mm) | Thick. (mm) | Dia. (mm) | ||||
| 10913 TR-64 |
26 | 7/0.16 | 0.48 | 0.48 | 1.44 | 134 | 3.4 | 3000 |
| 24 | 11/0.16 | 0.62 | 0.49 | 1.59 | 88.9 | 4.7 | ||
| 22 | 17/0.16 | 0.76 | 1.74 | 57.8 | 6.4 | |||
| 20 | 26/0.16 | 0.95 | 1.93 | 37.6 | 8.4 | |||
| 18 | 41/0.16 | 1.19 | 0.50 | 2.19 | 23.8 | 11.0 | ||
| 16 | 54/0.18 | 1.53 | 2.53 | 13.8 | 15.0 | |||
* In addition to the above table, we also manufacture flexible wires that use special conductors and take flexibility into account.
* The reference allowable current value is for a single wire in the air at an ambient temperature of 50℃.
* The CSA standard does not stipulate the rated voltage. Determined by the set used. Can be used at 600V Peak when used with CSA C22.2 No.1 equipment.
- U S E
- Internal Wiring of Appliances.
