Insulated wire
UL STYLE 1061, CSA AWM
SEMI-RIGID PVC-INSULATED WIRE
Application Standard
UL 758CSA C22.2 No.210
Rating
300V, 80℃
Application
Internal wiring of electronic equipment with little wiring space
Features
- Less thermal deformation due to the use of semi-rigid vinyl.
- Because it is thin, it is advantageous in terms of space factor.
- Excellent mechanical strength due to the use of semi-rigid vinyl.

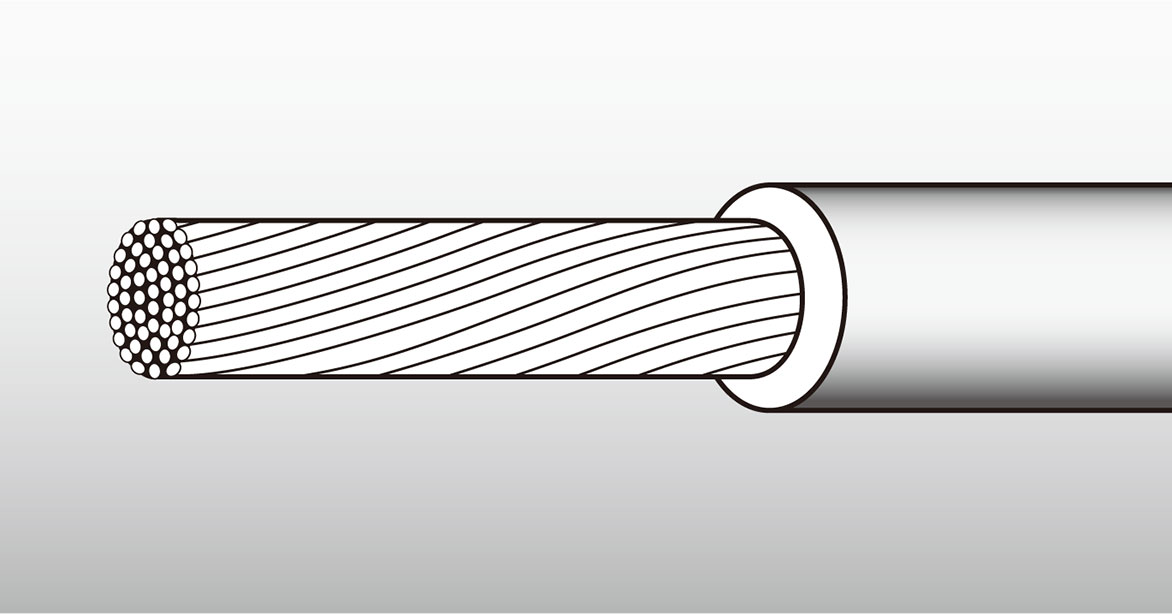

Structure and performance
| UL STYLE CSA TYPE |
Tinned Copper Cond. | SRPVC Ins. | Max. Cond. Resistance (20℃ Ω/km) |
Allowable Current (for reference) (A) |
Dielectric Strength (AC V/min.) |
|||
|---|---|---|---|---|---|---|---|---|
| Size (AWG) | Composition (No./mm) |
Dia. (mm) | Thick. (mm) | Dia. (mm) | ||||
| 1061 AWM |
28 | 7/0.13 | 0.38 | 0.26 | 0.90 | 229 | 2.5 | 1500 |
| 26 | 7/0.16 | 0.48 | 0.27 | 1.02 | 134 | 3.4 | ||
| 24 | 7/0.2 | 0.60 | 1.14 | 86.0 | 4.7 | |||
| 22 | 7/0.26 | 0.78 | 1.32 | 50.3 | 6.4 | |||
| 20 | 7/0.32 | 0.96 | 0.34 | 1.64 | 34.6 | 9.2 | ||
| 18 | 19/0.26 | 1.30 | 0.27 | 1.84 | 19.3 | 11.0 | ||
| 16 | 26/0.26 | 1.60 | 2.14 | 13.6 | 15.0 | |||
*The reference allowable current value is for a single wire in the air at an ambient temperature of 50℃.
- U S E
- Internal Wiring in Electric Bookkeeping, Accounting, Time-Recording Machines, or Electronic Equipment if within a chassis or protected from mechanical injury.
