Insulated wire
UL STYLE 3443, CSA AWM

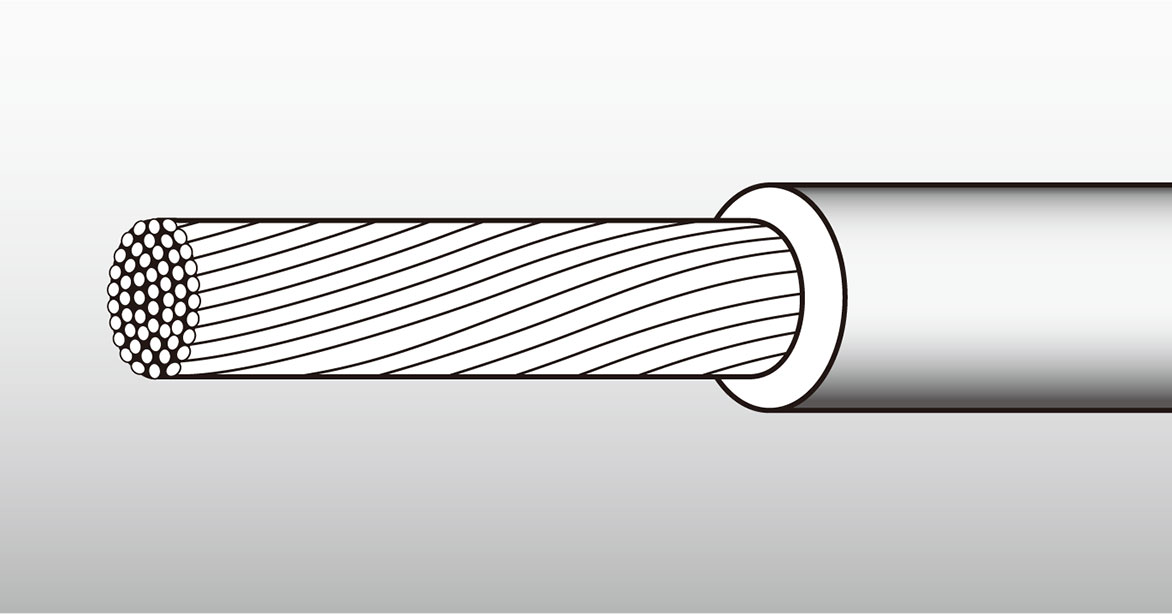

XLPVC-INSULATED WIRE
Application Standard
UL 758CSA C22.2 No.210
Rating
3443 :300V, 105℃AWM :150V, 105℃
Application
Internal wiring of electronic equipment with little wiring space
Features
- Cross-linked vinyl is used, so it is difficult to melt even when touched by a soldering iron.
- Because it is thin, it is advantageous in terms of space factor.
Structure and performance
| UL STYLE CSA TYPE |
Tinned Copper Cond. | XLPVC Ins. | Max. Cond. Resistance (20℃ Ω/km) |
Allowable Current (for reference) (A) |
Dielectric Strength (AC V/min.) |
|||
|---|---|---|---|---|---|---|---|---|
| Size (AWG) | Composition (No./mm) |
Dia. (mm) | Thick. (mm) | Dia. (mm) | ||||
| 3443 AWM |
28 | 7/0.13 | 0.38 | 0.27 | 0.92 | 229 | 2.5 | 2000 |
| 26 | 7/0.16 | 0.48 | 1.02 | 134 | 3.8 | |||
| 24 | 7/0.2 | 0.60 | 1.15 | 86.0 | 5.2 | |||
| 22 | 7/0.26 | 0.78 | 0.28 | 1.33 | 50.3 | 7.0 | ||
| 20 | 7/0.32 | 0.96 | 0.29 | 1.53 | 34.6 | 9.2 | ||
| 18 | 7/0.4 | 1.20 | 0.30 | 1.80 | 22.1 | 12.0 | ||
| 16 | 54/0.18 | 1.53 | 0.31 | 2.15 | 14.3 | 15.0 | ||
* Reference allowable current values are based on a single wire in the air at an ambient temperature of 75℃.
- U S E
- Internal Wiring of Appliances where not exposed to Mechanical Abuse.
