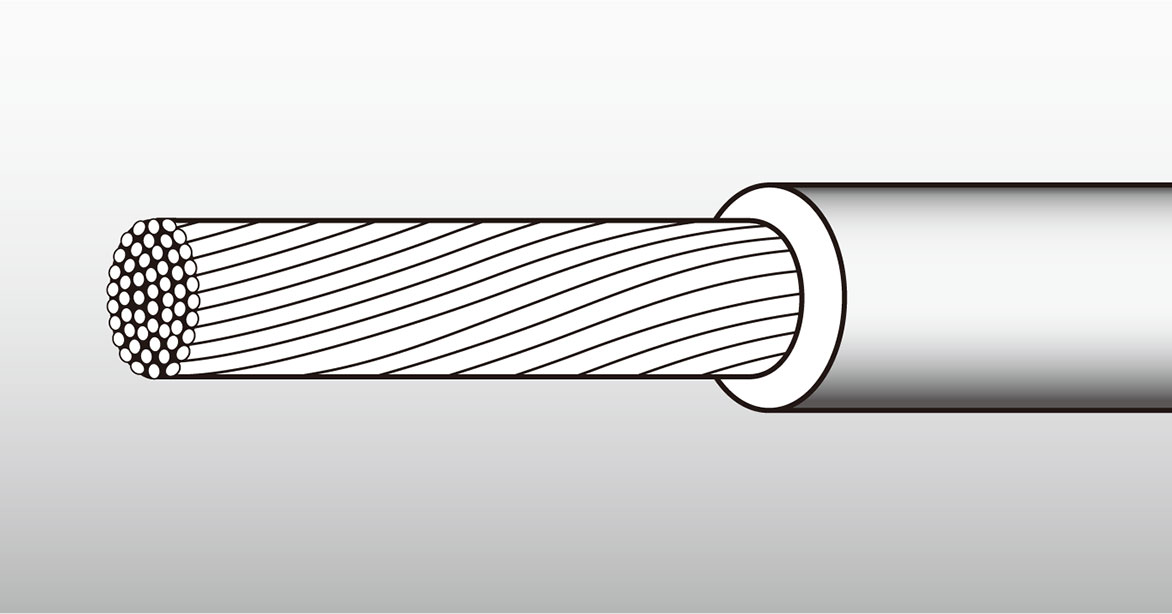

Insulated wire
UL STYLE 1015, CSA TYPE TEW
HEAT-RESISTANT PVC WIRE
Application Standard
UL 758CSA C22.2 No.127
Rating
600V, 105℃
Application
Internal wiring of various electrical and electronic equipment
Features
- UL and CSA are shared.
- Can be used as wiring for the primary circuit of general electrical and electronic equipment at 600V, 105℃ or less.
Structure and performance
| UL STYLE CSA TYPE |
Tinned Copper Cond. | PVC Ins. | Max. Cond. Resistance (20℃ Ω/km) |
Allowable Current (for reference) (A) |
Dielectric Strength (AC V/min.) |
|||
|---|---|---|---|---|---|---|---|---|
| Size (AWG) | Composition (No./mm) |
Dia. (mm) | Thick. (mm) | Dia. (mm) | ||||
| 1015 TEW |
28 | 7/0.13 | 0.38 | 0.80 | 1.98 | 229 | 2.5 | 2000 |
| 26 | 7/0.16 | 0.48 | 2.08 | 134 | 3.8 | |||
| 24 | 11/0.16 | 0.62 | 2.22 | 88.9 | 5.2 | |||
| 22 | 17/0.16 | 0.76 | 2.36 | 57.5 | 7.0 | |||
| 20 | 26/0.16 | 0.95 | 0.81 | 2.56 | 37.6 | 9.2 | ||
| 18 | 41/0.16 | 1.19 | 2.80 | 23.8 | 12.0 | |||
| 16 | 54/0.18 | 1.53 | 3.15 | 14.3 | 16.0 | |||
| 14 | 41/0.26 | 1.93 | 0.82 | 3.57 | 9.0 | 22.0 | ||
| 12 | 65/0.26 | 2.43 | 0.86 | 4.15 | 5.7 | 29.0 | ||
| 10 | 66/0.32 | 3.02 | 0.89 | 4.80 | 3.7 | 40.0 | ||
* In addition to the above table, we also manufacture flexible wires that use special conductors and consider flexibility, and wires that are all coated for wrapping and soldering.
* Reference allowable current values are based on a single wire in the air at an ambient temperature of 75℃.
* 28AWG is only approved by CSA.
- U S E
- Internal Wiring of Appliances.
