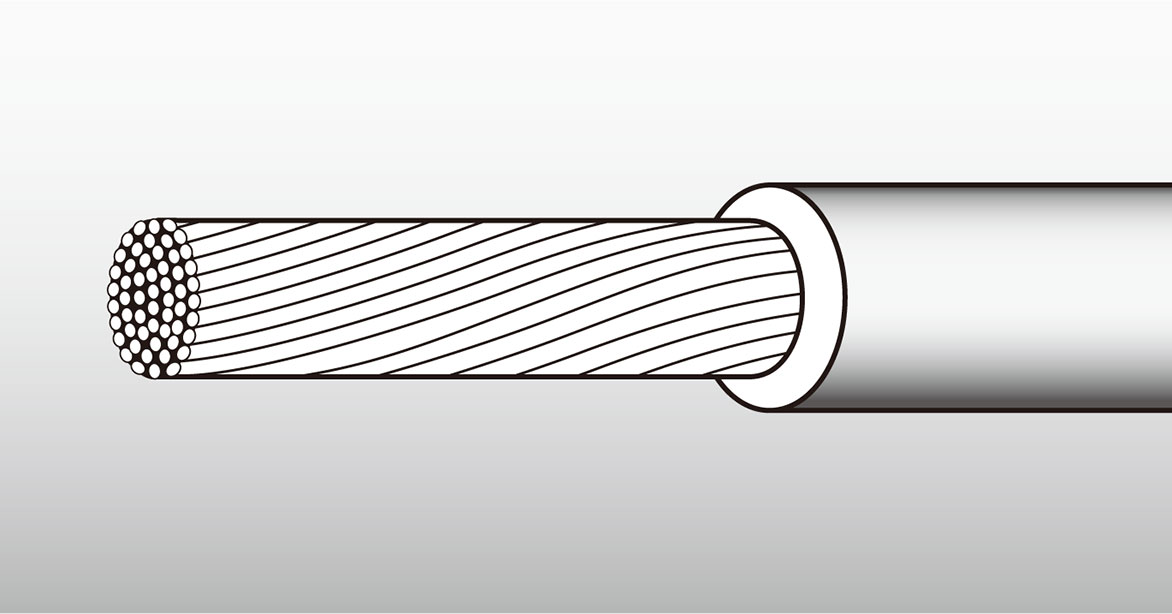

Insulated wire
UL STYLE 1032, CSA TYPE TR-32
HEAT-RESISTANT PVC WIRE
Application Standard
UL 758CSA C22.2 No.127
Rating
1032 :1000V, 90℃TR-32 :ー, 90℃
Application
Internal wiring for high-voltage circuits in various electronic devices
Features
- It has the same outer diameter as UL1015 and can be used for 1000V equipment.
Structure and performance
| UL STYLE CSA TYPE |
Tinned Copper Cond. | PVC Ins. | Max. Cond. Resistance (20℃ Ω/km) |
Allowable Current (for reference) (A) |
Dielectric Strength (AC V/min.) |
|||
|---|---|---|---|---|---|---|---|---|
| Size (AWG) | Composition (No./mm) |
Dia. (mm) | Thick. (mm) | Dia. (mm) | ||||
| 1032 TR-32 |
24 | 11/0.16 | 0.62 | 0.81 | 2.23 | 88.9 | 5.8 | 3000 |
| 22 | 17/0.16 | 0.76 | 0.80 | 2.36 | 57.5 | 8.0 | ||
| 20 | 26/0.16 | 0.95 | 0.81 | 2.56 | 37.6 | 9.6 | ||
| 18 | 41/0.16 | 1.19 | 2.80 | 23.0 | 13.0 | |||
| 16 | 54/0.18 | 1.53 | 3.15 | 14.3 | 18.0 | |||
* Reference allowable current values are based on a single wire in the air at an ambient temperature of 60℃.
* The CSA standard does not stipulate the rated voltage. Determined by the set used.
* When used with CSA C22.2 No.1 equipment, it can be used at 1400V Peak.
- U S E
- Internal Wiring of Appliances.
