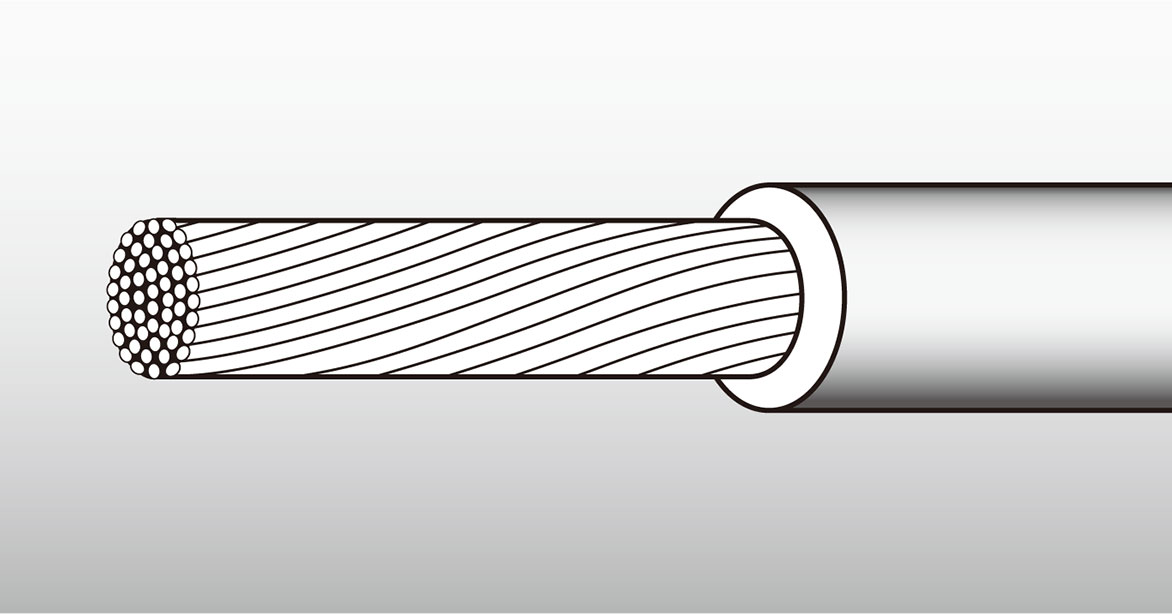

Insulated wire
UL STYLE 1672, CSA AWM
XLPVC DOUBLE INS. WIRE
Application Standard
UL 758CSA C22.2 No.210
Rating
300V, 105℃
Application
Internal wiring of various electrical and electronic equipment
Features
- Cross-linked vinyl is used, so it is difficult to melt even when touched by a soldering iron.
- Since the vinyl insulation thickness is 0.4 mm or more for both primary and secondary, it can also be used for European sets.
Structure and performance
| UL STYLE CSA TYPE |
Tinned Copper Cond. | Inner XLPVC Ins. | Outer XLPVC Ins. | Max. Cond. Resistance (20℃ Ω/km) |
Allowable Current (for reference) (A) |
Dielectric Strength (AC V/min.) |
||||
|---|---|---|---|---|---|---|---|---|---|---|
| Size (AWG) | Composition (No./mm) |
Dia. (mm) | Thick. (mm) | Dia. (mm) | Thick. (mm) | Dia. (mm) | ||||
| 1672 AWM |
26 | 7/0.16 | 0.48 | 0.48 | 1.44 | 0.48 | 2.40 | 134 | 3.8 | 4000 |
| 24 | 11/0.16 | 0.62 | 0.49 | 1.60 | 2.56 | 88.9 | 5.2 | |||
| 22 | 17/0.16 | 0.76 | 1.74 | 2.70 | 57.5 | 7.0 | ||||
| 20 | 26/0.16 | 0.95 | 1.93 | 0.49 | 2.90 | 37.6 | 9.2 | |||
| 18 | 41/0.16 | 1.19 | 0.53 | 2.24 | 0.46 | 3.16 | 23.8 | 12.0 | ||
| 16 | 54/0.18 | 1.53 | 0.52 | 2.58 | 0.48 | 3.54 | 14.3 | 16.0 | ||
*The minimum thickness of the primary and secondary insulators is 0.4mm or more.
* Reference allowable current values are based on a single wire in the air at an ambient temperature of 75℃.
- U S E
- Internal Wiring of Electronic Equipment.
