Insulated wire

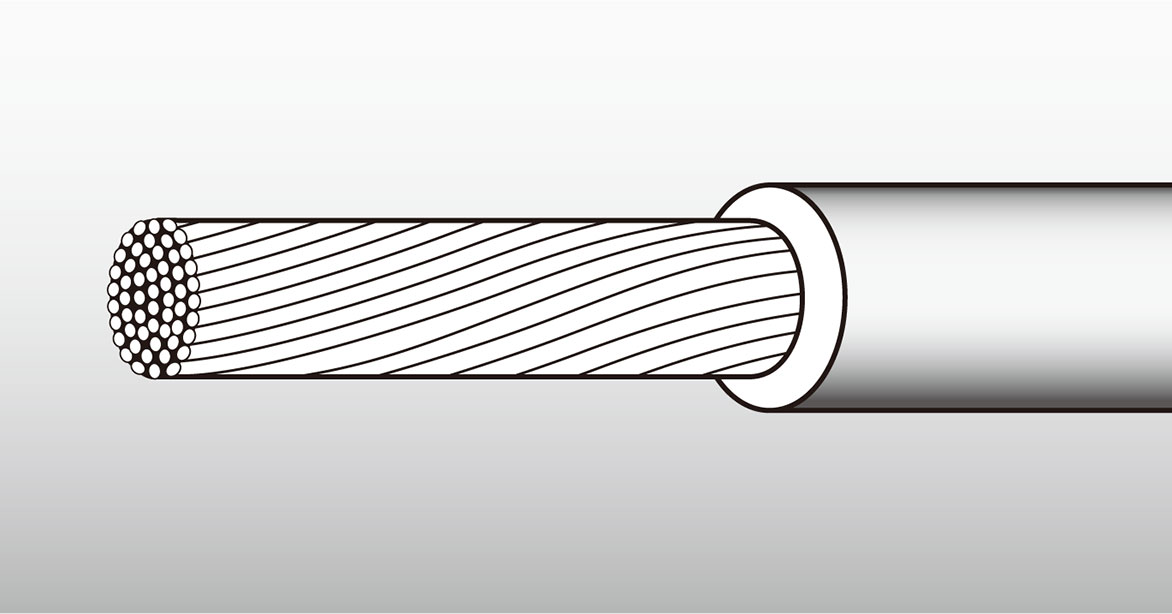

UL STYLE 1847
FEP-INSULATED WIRE
Application Standard
UL 758Rating
30V, 105℃
Application
Internal wiring of various electric and electronic devices where reliability is emphasized, such as heat resistance and chemical resistance.
Features
- Can be used at a constant temperature of 105℃.
- It can be used down to -260℃ and maintains sufficient flexibility at -85℃.
- Small coefficient of friction.
- Excellent chemical resistance.
- Nonflammable.
Structure and performance
| UL STYLE | Tinned Copper Cond. | FEP Ins. | Max. Cond. Resistance (20℃ Ω/km) |
Allowable Current (for reference) (A) |
Dielectric Strength (AC V/min.) |
|||
|---|---|---|---|---|---|---|---|---|
| Size (AWG) | Composition (No./mm) |
Dia. (mm) | Thick. (mm) | Dia. (mm) | ||||
| 1847 | 30 | 7/0.1 | 0.30 | 0.13 | 0.55 | 344 | 2 | 1500 |
| 28 | 7/0.13 | 0.38 | 0.64 | 229 | 2.6 | |||
| 26 | 7/0.16 | 0.48 | 0.74 | 133 | 3.7 | |||
* The reference allowable current value is for a single wire in the air at an ambient temperature of 50℃.
- U S E
- Internal Wiring of Appliances.
