Insulated wire
UL STYLE 10086
FEP-INSULATED WIRE
Application Standard
UL 758Rating
600V, 150℃
Application
Internal wiring of various electric and electronic devices where reliability is emphasized, such as heat resistance and chemical resistance.
Features
- Can be used at 150℃ all the time.
- It can be used down to -260℃ and maintains sufficient flexibility at -85℃.
- Excellent mechanical strength.
- Excellent chemical resistance.
- Nonflammable.

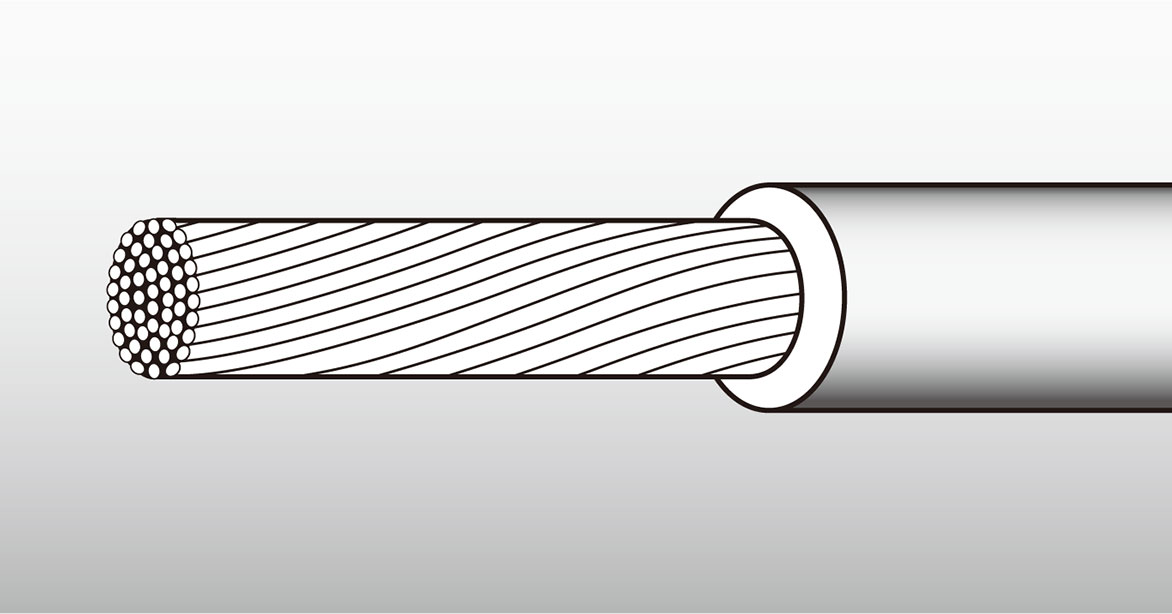

Structure and performance
| UL STYLE | Tinned Copper Cond. | FEP Ins. | Max. Cond. Resistance (20℃ Ω/km) |
Allowable Current (for reference) (A) |
Dielectric Strength (AC V/min.) |
|||
|---|---|---|---|---|---|---|---|---|
| Size (AWG) | Composition (No./mm) |
Dia. (mm) | Thick. (mm) | Dia. (mm) | ||||
| 10086 | 28 | 19/0.08 | 0.40 | 0.29 | 0.97 | 206 | 4.1 | 2000 |
| 26 | 30/0.08 | 0.51 | 0.28 | 1.06 | 130 | 5.5 | ||
| 24 | 50/0.08 | 0.66 | 1.22 | 77.4 | 7.6 | |||
| 22 | 78/0.08 | 0.82 | 1.38 | 50.2 | 10.0 | |||
* The reference allowable current value is for a single wire in the air at an ambient temperature of 500℃.
- U S E
- Internal Wiring of Appliances.
