Insulated wire
UL STYLE 1331

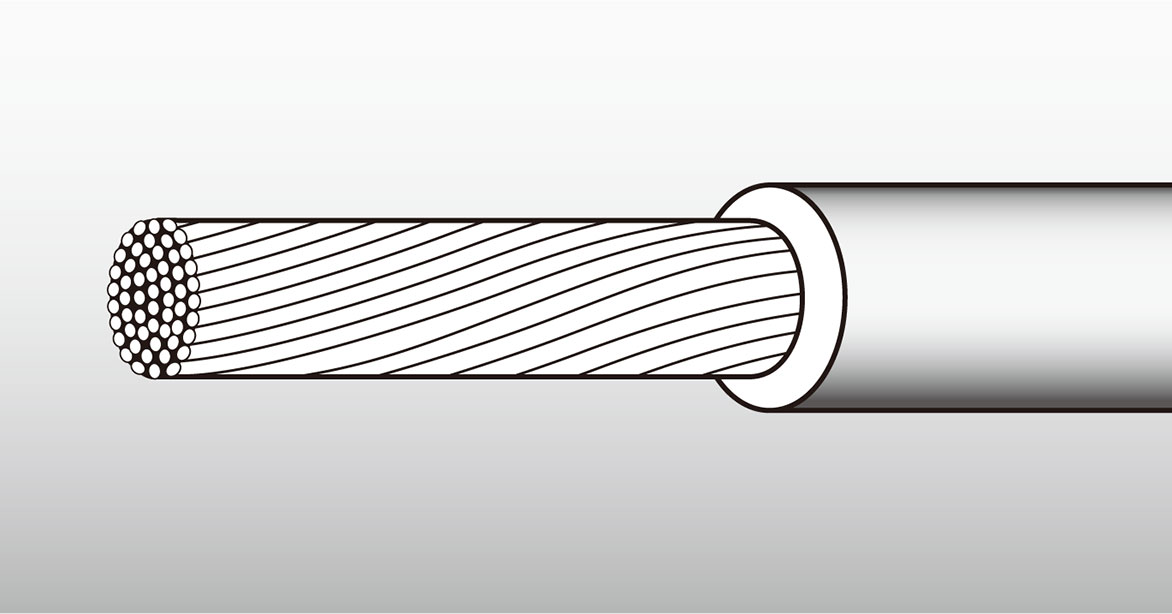

FEP-INSULATED WIRE
Application Standard
UL 758Rating
600V, 150℃
Application
Internal wiring of various electric and electronic devices where reliability is emphasized, such as heat resistance and chemical resistance.
Features
- Can be used at 150℃ all the time.
- It can be used down to -260℃ and maintains sufficient flexibility at -85℃.
- Small coefficient of friction.
- Excellent chemical resistance.
- Nonflammable.
Structure and performance
| UL STYLE | Tinned Copper Cond. | FEP Ins. | Max. Cond. Resistance (20℃ Ω/km) |
Allowable Current (for reference) (A) |
Dielectric Strength (AC V/min.) |
|||
|---|---|---|---|---|---|---|---|---|
| Size (AWG) | Composition (No./mm) |
Dia. (mm) | Thick. (mm) | Dia. (mm) | ||||
| 1331 | 26 | 7/0.16 | 0.48 | 0.54 | 1.56 | 134 | 6.2 | 2000 |
| 24 | 7/0.2 | 0.60 | 0.55 | 1.70 | 85.0 | 8.1 | ||
| 22 | 7/0.26 | 0.78 | 1.88 | 50.3 | 11.2 | |||
| 20 | 7/0.32 | 0.96 | 2.06 | 34.6 | 14.1 | |||
| 18 | 19/0.26 | 1.30 | 2.40 | 19.3 | 20.5 | |||
| 16 | 19/0.32 | 1.60 | 2.70 | 12.7 | 26.8 | |||
* The reference allowable current value is for a single wire in the air at an ambient temperature of 50℃.
- U S E
- Internal Wiring of Appliances.
