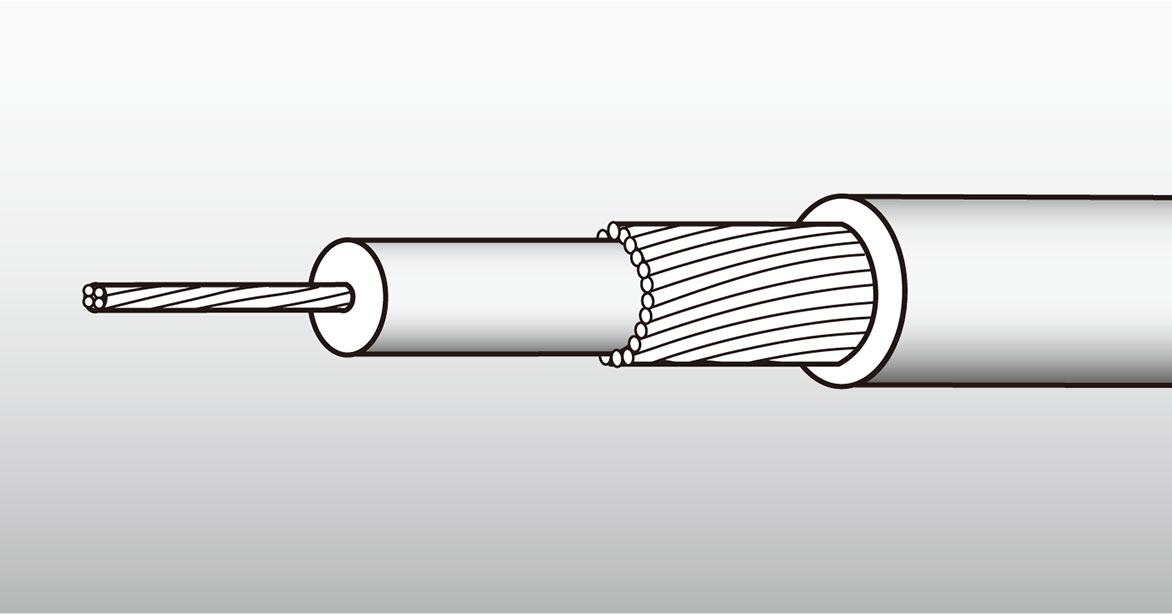

Single-conductor shielded wire
UL STYLE 1571
PVC-INSULATED SHIELDED WIRE
Application Standard
UL 758Rating
30V, 80℃
Application
Internal wiring of small electrical and electronic equipment with little wiring space
Features
- Thin and flexible.
- It is advantageous in terms of space factor.
- The cross-linked type is difficult to melt even when touched with a soldering iron.
Structure and performance
| UL STYLE | Tinned Copper Cond. | PVC Ins. | Tinned Copper Shield |
PVC Sheath | Max. Cond. Resistance (20℃ Ω/km) |
Allowable Current (for reference) (A) |
Dielectric Strength (AC V/min.) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Size (AWG) | Composition (No./mm) |
Dia. (mm) | Thick. (mm) | Dia. (mm) | Thick. (mm) | Dia. (mm) | |||||
| 1571 | 32 | 7/0.08 | 0.24 | 0.17 | 0.57 | Horizontal Wrap |
0.21 | 1.15 | 559 | 1.3 | 500 |
| 30 | 13/0.08 | 0.33 | 0.26 | 0.84 | 0.22 | 1.50 | 301 | 1.8 | |||
| 28 | 7/0.13 | 0.38 | 0.22 | 0.82 | 1.46 | 229 | 2.5 | ||||
| 26 | 12/0.12 | 0.48 | 0.26 | 1.00 | 0.25 | 1.70 | 145 | 3.4 | |||
| 24 | 11/0.16 | 0.62 | 0.31 | 1.24 | 0.33 | 2.10 | 88.9 | 4.7 | |||
| 22 | 17/0.16 | 0.76 | 0.25 | 1.26 | 0.31 | ||||||
*The reference allowable current value is for a single wire in the air at an ambient temperature of 50℃.
- U S E
- Internal Wiring of Class 2 Circuits in Electronic Equipment.
