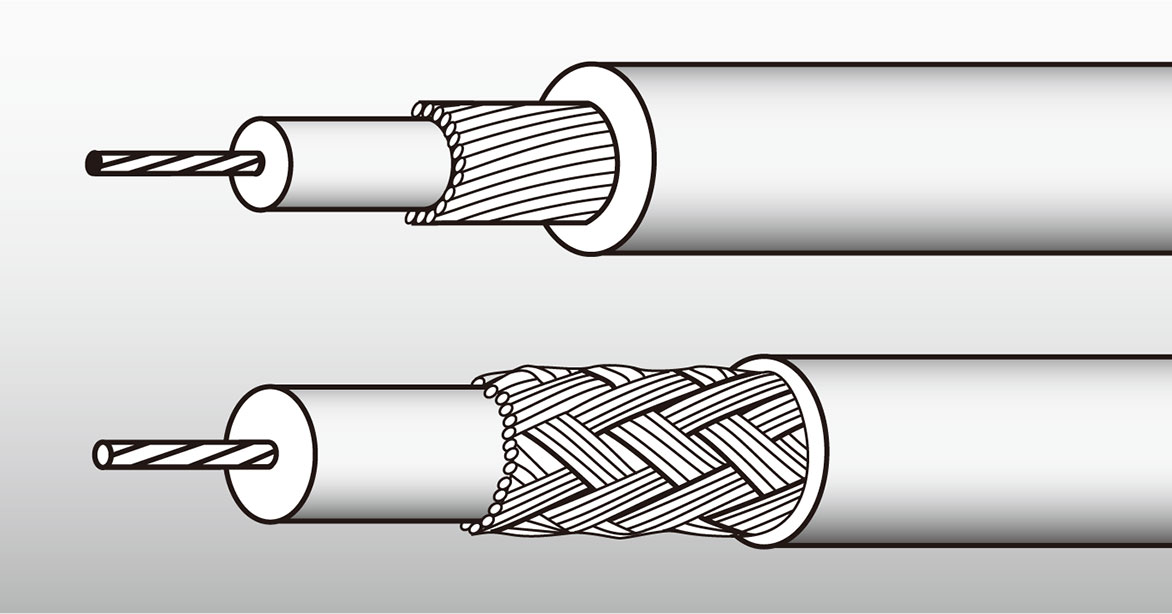

Single-conductor shielded wire
UL STYLE 1533
SEMI-RIGID PVC-INSULATED SHIELDED WIRE
Application Standard
UL 758Rating
Voltage Not Specified, 80℃
Application
Internal wiring of various electrical and electronic equipment
Features
- The insulation thickness is thin and the outer diameter is thin, so it is advantageous in terms of space factor.
- Since semi-rigid vinyl is used for the insulator, there is little thermal deformation and excellent mechanical strength.
Structure and performance
| UL STYLE Shield Type |
Tinned Copper Cond. | SRPVC Ins. | Tinned Copper Shield |
PVC Sheath | Max. Cond. Resistance (20℃ Ω/km) |
Allowable Current (for reference) (A) |
Dielectric Strength (AC V/min.) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Size (AWG) | Composition (No./mm) |
Dia. (mm) | Thick. (mm) | Dia. (mm) | Thick. (mm) | Dia. (mm) | |||||
| 1533 Horizontal Wrap |
28 | 7/0.13 | 0.38 | 0.26 | 0.90 | Horizontal Wrap |
0.35 | 1.80 | 229 | 2.5 | 1500 | 26 | 7/0.16 | 0.48 | 0.27 | 1.02 | 0.34 | 1.90 | 134 | 3.4 |
| 24 | 7/0.2 | 0.60 | 1.14 | 2.02 | 86.0 | 4.7 | |||||
| 22 | 7/0.26 | 0.78 | 1.32 | 0.35 | 2.21 | 50.3 | 6.4 | ||||
| 20 | 7/0.32 | 0.96 | 1.50 | 0.37 | 2.45 | 34.6 | 8.4 | ||||
| 1533 Braided Braid |
28 | 7/0.13 | 0.38 | 0.26 | 0.90 | Braided Braid |
0.30 | 2.05 | 229 | 2.5 | 1500 |
| 26 | 7/0.16 | 0.48 | 0.27 | 1.02 | 2.25 | 134 | 3.4 | ||||
| 24 | 7/0.2 | 0.60 | 1.14 | 2.40 | 86.0 | 4.7 | |||||
| 22 | 7/0.26 | 0.78 | 1.32 | 2.55 | 50.3 | 6.4 | |||||
| 20 | 7/0.32 | 0.96 | 1.50 | 2.75 | 34.6 | 8.4 | |||||
* The reference allowable current value is for a single wire in the air at an ambient temperature of 50℃.
* There is no voltage regulation, but please use it at 300V Peak (UL 1270, 1410) or less.
- U S E
- Internal Wiring of Electronic Equipment Where Not Exposed to Movement or Mechanical Abuse.
