Single-conductor shielded wire
UL STYLE 1185, CSA TYPE TR-64
HEAT-RESISTANT PVC INSULATED SHIELDED WIRE
Application Standard
UL 758CSA C22.2 No.127
Rating
1185 :300V, 80℃TR-64 :ー, 90℃
Application
Internal wiring of various electrical and electronic equipment
Features
- UL and CSA are shared.
- It can be used for general electric and electronic equipment under 300V and 80℃.

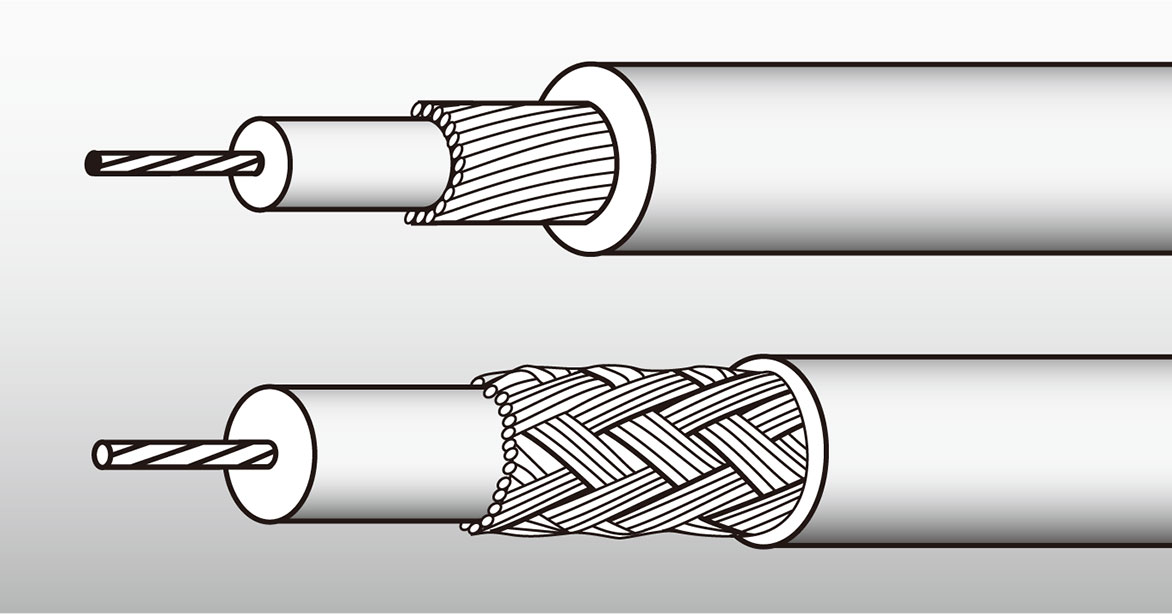

Structure and performance
| UL STYLE CSA TYPE Shield Type |
Tinned Copper Cond. | PVC Ins. | Tinned Copper Shield |
PVC Sheath | Max. Cond. Resistance (20℃ Ω/km) |
Allowable Current (for reference) (A) |
Dielectric Strength (AC V/min.) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Size (AWG) | Composition (No./mm) |
Dia. (mm) | Thick. (mm) | Dia. (mm) | Thick. (mm) | Dia. (mm) | |||||
| 1185 TR-64 Horizontal Wrap |
28 | 7/0.13 | 0.38 | 0.41 | 1.19 | Horizontal Wrap |
0.44 | 2.30 | 229 | 2.5 | 2000 |
| 26 | 7/0.16 | 0.48 | 1.29 | 2.40 | 134 | 3.4 | |||||
| 24 | 11/0.16 | 0.62 | 1.43 | 2.54 | 88.9 | 4.7 | |||||
| 22 | 17/0.16 | 0.76 | 1.58 | 0.45 | 2.70 | 57.5 | 6.4 | ||||
| 20 | 26/0.16 | 0.95 | 1.77 | 2.90 | 37.6 | 8.4 | |||||
| 18 | 41/0.16 | 1.19 | 0.42 | 2.02 | 0.50 | 3.26 | 23.8 | 11.0 | |||
| 1185 TR-64 Braided Braid |
28 | 7/0.13 | 0.38 | 0.41 | 1.19 | Braided Braid |
0.43 | 2.60 | 229 | 2.5 | 2000 |
| 26 | 7/0.16 | 0.48 | 1.29 | 2.70 | 134 | 3.4 | |||||
| 24 | 11/0.16 | 0.62 | 1.43 | 2.86 | 88.9 | 4.7 | |||||
| 22 | 17/0.16 | 0.76 | 1.58 | 0.45 | 3.00 | 57.5 | 6.4 | ||||
| 20 | 26/0.16 | 0.95 | 1.77 | 3.22 | 37.6 | 8.4 | |||||
| 18 | 41/0.16 | 1.19 | 0.42 | 2.02 | 0.50 | 3.57 | 23.8 | 11.0 | |||
* The reference allowable current value is for a single wire in the air at an ambient temperature of 50℃.
When used in CSA C22.2 No.1 equipment, paper tape must be wrapped over vinyl insulation for use up to 600V peak.
- U S E
- Internal Wiring of Appliances and Electronic Equipment.
