Single-conductor shielded wire
UL STYLE 1626, CSA TYPE REW
XLPVC INSULATED SHIELDED WIRE
Application Standard
UL 758CSA C22.2 No.127
Rating
300V, 105℃
Application
Internal wiring of temperature raising equipment such as various electric and electronic
Features
- Cross-linked vinyl is used, so it is difficult to melt even when touched by a soldering iron.
- UL and CSA are shared.
- Thickness equivalent to UL 1185 and rated at 105℃.

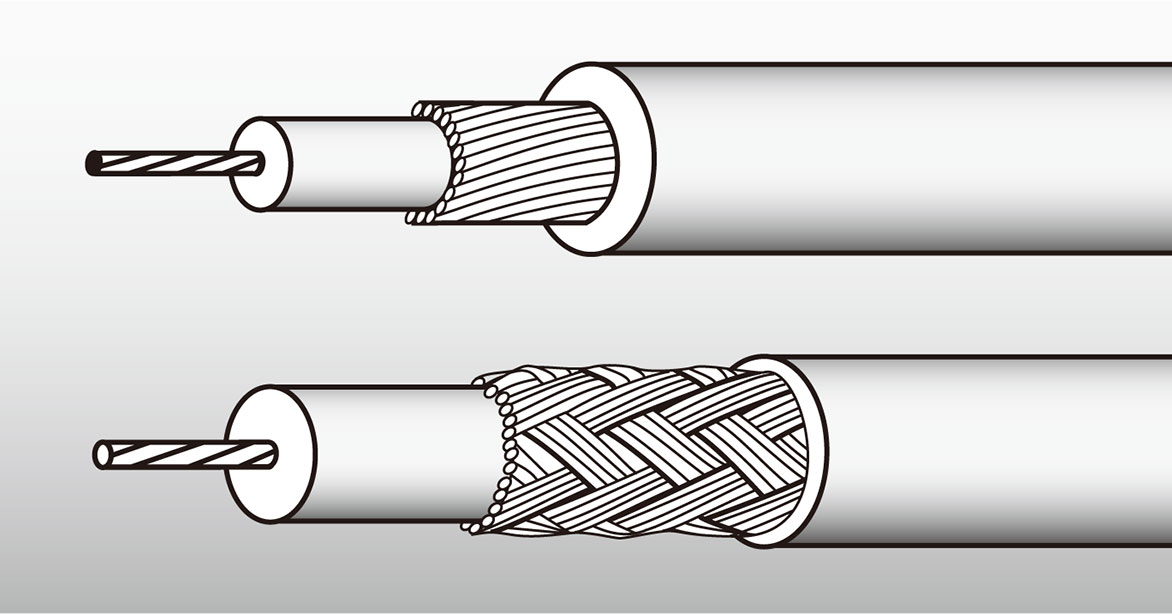

Structure and performance
| UL STYLE CSA TYPE Shield Type |
Tinned Copper Cond. | XLPVC Ins. | Tinned Copper Shield |
XLPVC Sheath | Max. Cond. Resistance (20℃ Ω/km) |
Allowable Current (for reference) (A) |
Dielectric Strength (AC V/min.) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Size (AWG) | Composition (No./mm) |
Dia. (mm) | Thick. (mm) | Dia. (mm) | Thick. (mm) | Dia. (mm) | |||||
| 1626 REW Horizontal Wrap |
26 | 7/0.16 | 0.48 | 0.48 | 1.44 | Horizontal Wrap |
0.44 | 2.51 | 134 | 3.8 | 2000 |
| 24 | 11/0.16 | 0.62 | 0.49 | 1.60 | 2.70 | 88.9 | 5.2 | ||||
| 22 | 17/0.16 | 0.76 | 1.74 | 0.45 | 2.88 | 57.5 | 7.0 | ||||
| 20 | 26/0.16 | 0.95 | 1.93 | 3.07 | 37.6 | 9.2 | |||||
| 18 | 41/0.16 | 1.19 | 0.53 | 2.24 | 0.50 | 3.48 | 23.8 | 12.0 | |||
| 1626 REW Braided Braid |
26 | 7/0.16 | 0.48 | 0.48 | 1.44 | Braided Braid |
0.44 | 2.82 | 134 | 3.8 | 2000 |
| 24 | 11/0.16 | 0.62 | 0.49 | 1.60 | 3.01 | 88.9 | 5.2 | ||||
| 22 | 17/0.16 | 0.76 | 1.74 | 0.45 | 3.19 | 57.5 | 7.0 | ||||
| 20 | 26/0.16 | 0.95 | 1.93 | 3.38 | 37.6 | 9.2 | |||||
| 18 | 41/0.16 | 1.19 | 0.53 | 2.24 | 0.50 | 3.79 | 23.8 | 12.0 | |||
* The reference allowable current value is for a single wire in the air at an ambient temperature of 75℃.
- U S E
- Internal Wiring of Electronic Equipment.
