Single-conductor shielded wire
UL STYLE 1120, CSA TYPE TEW
HEAT-RESISTANT PVC INSULATED SHIELDED WIRE
Application Standard
UL 758CSA C22.2 No.127
Rating
600V, 105℃
Application
Internal wiring of various electrical and electronic equipment
Features
- UL and CSA are shared.
- It can be used for general electric and electronic equipment under 600V and 105℃.
Structure and performance

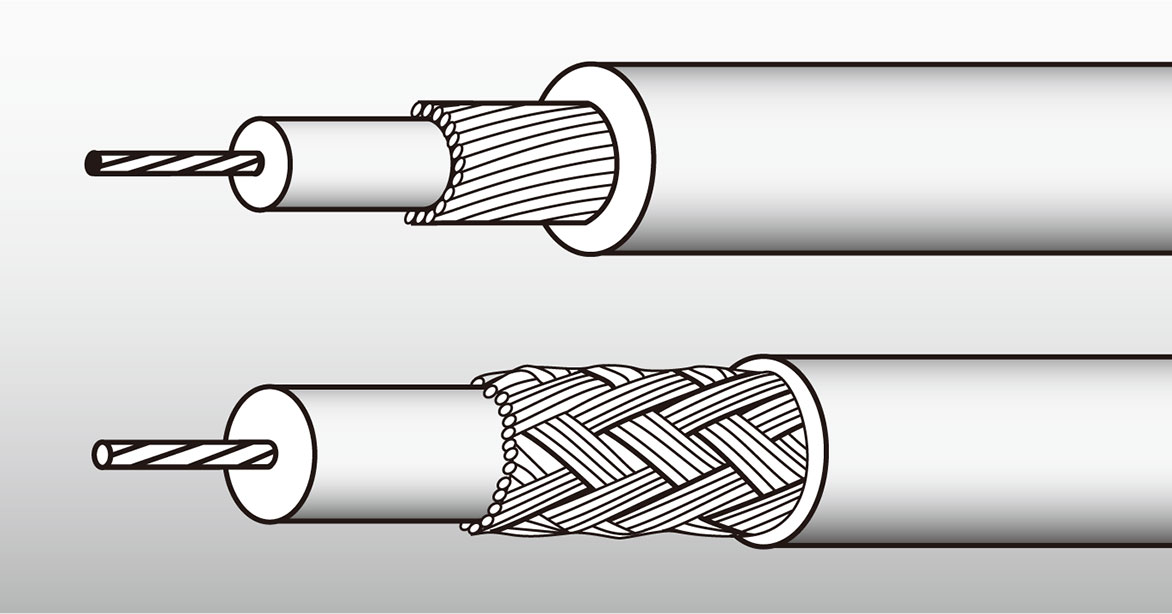

| UL STYLE CSA TYPE Shield Type |
Tinned Copper Cond. | PVC Ins. | Tinned Copper Shield |
PVC Sheath | Max. Cond. Resistance (20℃ Ω/km) |
Allowable Current (for reference) (A) |
Dielectric Strength (AC V/min.) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Size (AWG) | Composition (No./mm) |
Dia. (mm) | Thick. (mm) | Dia. (mm) | Thick. (mm) | Dia. (mm) | |||||
| 1120 TEW Horizontal Wrap |
24 | 11/0.16 | 0.62 | 0.8 | 2.22 | Horizontal Wrap |
0.86 | 4.20 | 88.9 | 5.2 | 2000 |
| 22 | 17/0.16 | 0.76 | 2.36 | 4.35 | 57.5 | 7.0 | |||||
| 20 | 26/0.16 | 0.95 | 2.56 | 4.55 | 37.6 | 9.2 | |||||
| 18 | 41/0.16 | 1.19 | 2.80 | 4.80 | 23.8 | 12.0 | |||||
| 16 | 54/0.18 | 1.53 | 3.15 | 5.20 | 14.3 | 16.0 | |||||
| 1120 TEW Braided Braid |
24 | 11/0.16 | 0.62 | 0.8 | 2.22 | Braided Braid |
0.86 | 4.50 | 88.9 | 5.2 | 2000 |
| 22 | 17/0.16 | 0.76 | 2.36 | 4.60 | 57.5 | 7.0 | |||||
| 20 | 26/0.16 | 0.95 | 2.56 | 4.95 | 37.6 | 9.2 | |||||
| 18 | 41/0.16 | 1.19 | 2.80 | 5.10 | 23.8 | 12.0 | |||||
| 16 | 54/0.18 | 1.53 | 3.15 | 5.45 | 14.3 | 16.0 | |||||
* The reference allowable current value is for a single wire in the air at an ambient temperature of 75℃.
- U S E
- Internal Wiring of Appliances or Phonograph pick up and Volume control.
