Single-conductor shielded wire
UL STYLE 1631
IRRADIATED FOAM PE-INSULATED SHIELDED WIRE
Application Standard
UL 758Rating
30V, 80℃
Application
Internal wiring of audio and video equipment
Features
2) As for flammability, only the finished products pass the UL and Electrical Appliance and Material Control Law vertical combustion tests.
3) Since the dielectric constant is small, it is a shield wire with a small outer diameter and low capacitance.
- Cross-linked foamed polyethylene insulation is used.
2) As for flammability, only the finished products pass the UL and Electrical Appliance and Material Control Law vertical combustion tests.
3) Since the dielectric constant is small, it is a shield wire with a small outer diameter and low capacitance.

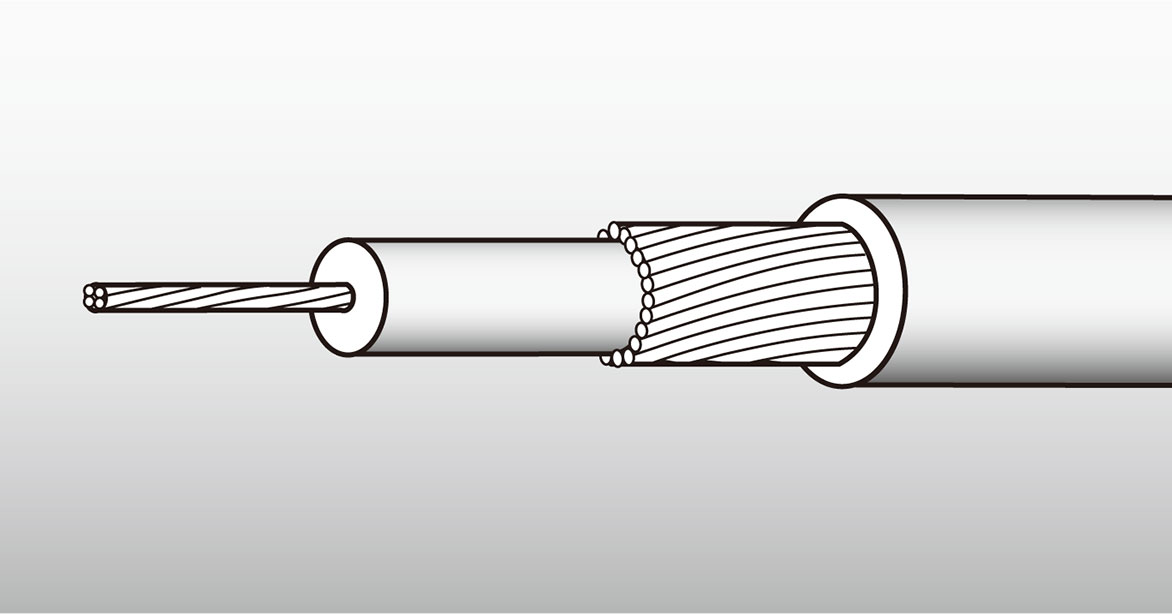

Structure and performance
| UL STYLE | Tinned Copper Cond. | Insulation | Tinned Copper Shield |
PVC Sheath | Max. Cond. Resistance (20℃ Ω/km) |
Capacitance (1kHz pF/m) |
Dielectric Strength (AC V/min.) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Size (AWG) | Composition (No./mm) |
Dia. (mm) | Thick. (mm) | Dia. (mm) | Thick. (mm) | Dia. (mm) | |||||
| 1631 | 28 | 7/0.13 | 0.38 | 0.29 | 0.95 | Horizontal Wrap |
0.28 | 1.70 | 224 | 110 or less | 500 |
| 26 | 7/0.16 | 0.48 | 0.36 | 1.20 | 1.95 | 134 | |||||
| 24 | 7/0.20 | 0.60 | 0.40 | 1.40 | 0.31 | 2.22 | 86.0 | ||||
- U S E
- Internal Wiring of Electronic Equipment in Class 2 Circuits only.
