2,3-conductor shielded wire
UL STYLE 2547
3 COND. SEMI-RIGID PVC INSULATED SHIELDED WIRE 3-conductor shielded wire
Application Standard
UL 758Rating
Voltage Not Specified, 80℃
Application
Internal wiring of various electrical and electronic equipment
Features
- Since semi-rigid vinyl is used for the insulator, there is little thermal deformation and excellent mechanical strength.
Structure and performance
| UL STYLE Shield Type |
Tinned Copper Cond. | SRPVC Ins. | Tinned Copper Shield |
PVC Sheath | Max. Cond. Resistance (20℃ Ω/km) |
Allowable Current (for reference) (A) |
Dielectric Strength (AC V/min.) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Size (AWG) | Composition (No./mm) |
Dia. (mm) | Thick. (mm) | Dia. (mm) | Thick. (mm) | Dia. (mm) | |||||

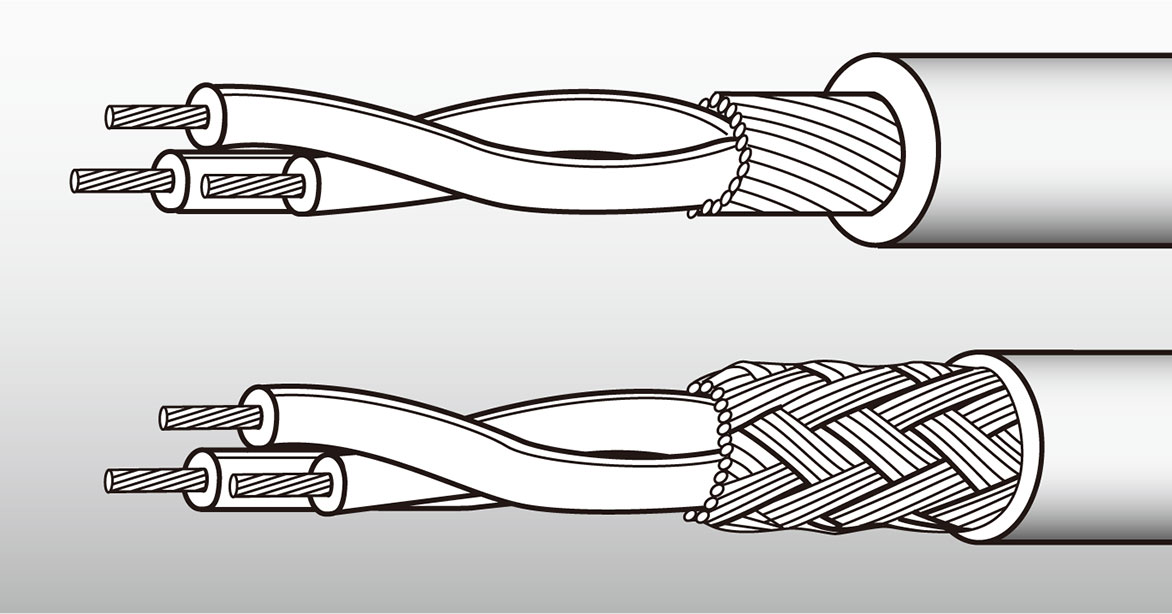

| 2547 Horizontal Wrap |
28 | 7/0.13 | 0.38 | 0.27 | 0.90 | Horizontal Wrap |
0.32 | 2.74 | 231 | 2.3 | 1500 |
| 26 | 7/0.16 | 0.48 | 1.02 | 0.34 | 3.08 | 137 | 3.1 | ||||
| 24 | 7/0.2 | 0.60 | 1.14 | 0.33 | 3.32 | 86.6 | 4.4 | ||||
| 22 | 7/0.26 | 0.78 | 1.32 | 3.78 | 52.8 | 5.9 | |||||
| 20 | 7/0.32 | 0.96 | 1.50 | 4.20 | 36.3 | 7.8 | |||||
| 2547 Braided Braid |
28 | 7/0.13 | 0.38 | 0.27 | 0.90 | Braided Braid |
0.33 | 3.10 | 240 | 2.3 | 1500 |
| 26 | 7/0.16 | 0.48 | 1.02 | 3.45 | 141 | 3.1 | |||||
| 24 | 7/0.2 | 0.60 | 1.14 | 0.35 | 3.60 | 88.0 | 4.4 | ||||
| 22 | 7/0.26 | 0.78 | 1.32 | 0.41 | 4.10 | 51.3 | 5.9 | ||||
| 20 | 7/0.32 | 0.96 | 1.50 | 4.50 | 35.3 | 7.8 | |||||
* The reference allowable current value is for a single wire in the air at an ambient temperature of 50℃.
* There is no voltage regulation, but please use it at 300V Peak (UL 1270, 1410) or less.
- U S E
- Internal Wiring of Electronic Equipment Where Not Exposed to Movement or Mechanical Abuse.
