2,3-conductor shielded wire
UL STYLE 2096, CSA TYPE TR-64

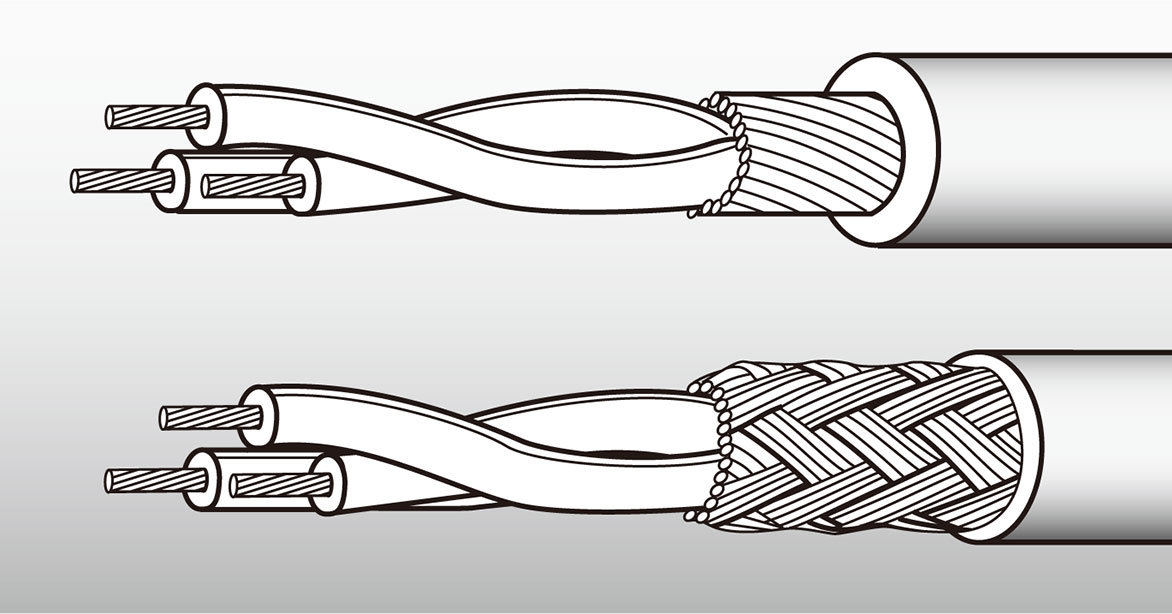

3COND. HEAT-RESISTANT PVC INSULATED SHIELDED WIRE 3-conductor shielded wire
Application Standard
UL 758CSA C22.2 No.127
Rating
2096 :300V, 80℃TR-64 :ー, 90℃
Application
Internal wiring of various electrical and electronic equipment
Features
- UL and CSA are shared.
- It can be used for general electric and electronic equipment under 300V and 80℃.
Structure and performance
| UL STYLE CSA TYPE Shield Type |
Tinned Copper Cond. | PVC Ins. | Tinned Copper Shield |
PVC Sheath | Max. Cond. Resistance (20℃ Ω/km) |
Allowable Current (for reference) (A) |
Dielectric Strength (AC V/min.) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Size (AWG) | Composition (No./mm) |
Dia. (mm) | Thick. (mm) | Dia. (mm) | Thick. (mm) | Dia. (mm) | |||||
| 2096 TR-64 Horizontal Wrap |
26 | 7/0.16 | 0.48 | 0.41 | 1.29 | Horizontal Wrap |
0.50 | 4.10 | 141 | 3.0 | 2000 |
| 24 | 11/0.16 | 0.62 | 1.43 | 4.40 | 93.3 | 4.3 | |||||
| 22 | 17/0.16 | 0.76 | 1.58 | 4.70 | 60.4 | 5.8 | |||||
| 20 | 26/0.16 | 0.95 | 1.77 | 0.60 | 5.38 | 39.5 | 7.6 | ||||
| 2096 TR-64 Braided Braid | 26 | 7/0.16 | 0.48 | 0.41 | 1.29 | Braided Braid |
0.48 | 4.35 | 141 | 3.0 | 2000 |
| 24 | 11/0.16 | 0.62 | 1.43 | 4.65 | 93.3 | 4.3 | |||||
| 22 | 17/0.16 | 0.76 | 1.58 | 4.90 | 58.7 | 5.8 | |||||
| 20 | 26/0.16 | 0.95 | 1.77 | 0.60 | 5.60 | 39.5 | 7.6 | ||||
| 18 | 41/0.16 | 1.19 | 0.42 | 2.02 | 0.70 | 6.40 | 25.0 | 10.0 | |||
* The reference allowable current value is for a single wire in the air at an ambient temperature of 50℃.
* When used with CSA C22.2 No.1 equipment, it is necessary to wrap paper tape on the vinyl insulator in order to use it up to 600V peak.
- U S E
- Internal Wiring of Appliances and Electronic Equipment.
